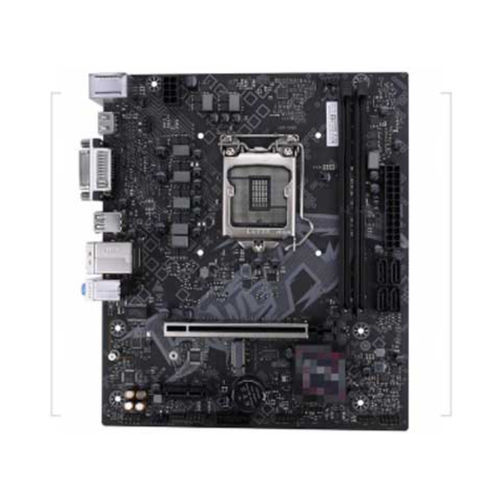

Micro-ATX motherboard B560M

10th generation Intel® Core™11th Generation Intel® Core™Intel®

Micro ATX B560M is 195*225 mm. Micro ATX Business Motherboard installed PCIE/onboard (reserved) GPU and Intel 11/10th CPU, MAX 65W Performance CPU. Memory is 2 x DDR4 Memory, support dual-channel. Operation system is WINDOWS, BIOS is AMI. Business motherboard comes with M.2 SSD (support PCIE GEN3 x4/SATA, support 2242/2280 SSD) and 4 x SATA Gen3 Port. Micro ATX motherboard supports Gigabit network interface. Audio: 1 x Line out, 1 x Line in, 1 x Mic in; 3.5mm Audio Jack and HD Audio IC, 5.1CH chipset. Micro ATX designed with HDMI, VGA, DP for display. IO: 4 x USB2.0, 2 x USB 3.2 Gen1, Onboard: 1 x USB2.0 pin, 1 x USB3.0 pin (2port), PCI Express 4.0/3.0x16 slot, PCI Express 3.0 x1 slot, COM, F_Panel, Onboard: 1 x USB2.0 pin, 1 x USB3.2 Gen1 pin, 1 x COM pin, 2 x CPU Fan, 1 x System Fan. ATX, 24+8 pin Power input.
