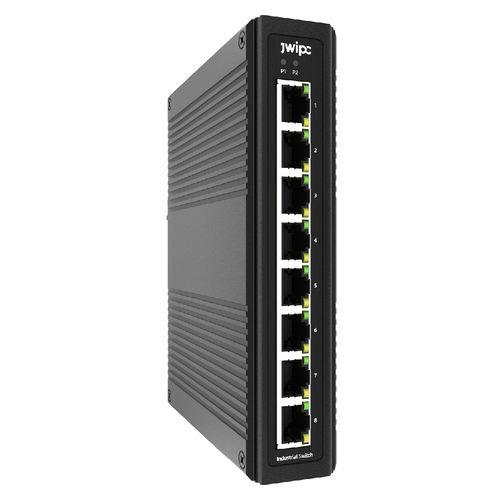

Unmanaged ethernet switch ISG308P

8 portsDIN railPoE

Industrial chip scheme, high standard industrial protection level, can be widely used in industrial automation, smart city, smart transportation and other industrial scenarios. Performance - Switching Capability - 16Gbps Auto-negotiation - Support Auto-MDI/MDIX - Support LED Port LED Green: link/active Yellow:Poe Power Supply Input range - 46~57VDC, Redundant dual power inputs. connector 1 removable 4-contact terminal block(s) Overload Current Protection - Support Reverse Polarity Protection - Support Mechanical - SIze 158mm(L)×118mm(W)×35mm(H) Heat Dissipation Fanless natural heat dissipation design Environment Operating Temperature -40~75℃(-40~167 °F) Storage Temperature -40~85℃(-40~185 °F) Operating Humanity - 5 to 95%（(non-condensing） Storage Humanity 5 to 95%（(non-condensing） Standards And Certifications - EMC EN 55032/24 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF Safety EN 60950-1、EN 60950-1 (LVD) Shock IEC 60068-2-27 Vibration IEC 60068-2-6 Freefall IEC 60068-2-31 WEEE Support RoHS Support
