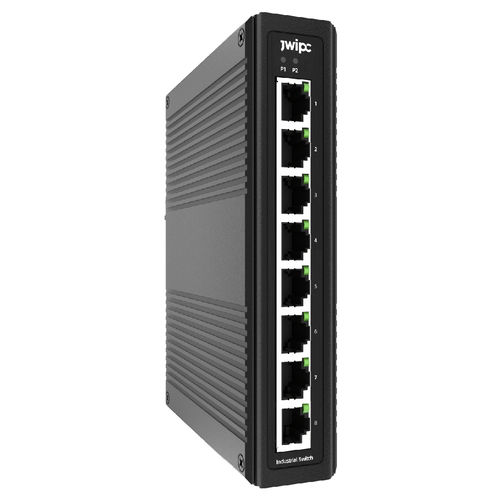

Unmanaged ethernet switch ISF108

8 portsDIN railredundant

Industrial chip scheme, high standard industrial protection level, can be widely used in industrial automation, smart city, smart transportation and other industrial scenarios. Performance Switching Capability 1.6Gbps Auto-negotiation Support Auto-MDI/MDIX Support LED Port LED - Green: link/active Power Supply Input range DC 18~48V Redundant dual power inputs. connector 1 removable 4-contact terminal block(s) Overload Current Protection Support Reverse Polarity Protection Support Mechanical - SIze 158mm(L)×118mm(W)×35mm(H) Environment Operating Temperature - -40~75℃(-40~167 °F) Storage Temperature -40~85℃(-40~185 °F) Operating Humanity - 5 to 95%（(non-condensing） Storage Humanity 5 to 95%（(non-condensing） Standards And Certifications - EMC - EN 55032/24 EMI - CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF Safety EN 60950-1、EN 60950-1 (LVD) Shock IEC 60068-2-27 Vibration IEC 60068-2-6 Freefall IEC 60068-2-31 WEEE Support RoHS Support
