Expansion PC JEC-5310

boxdesktopembedded

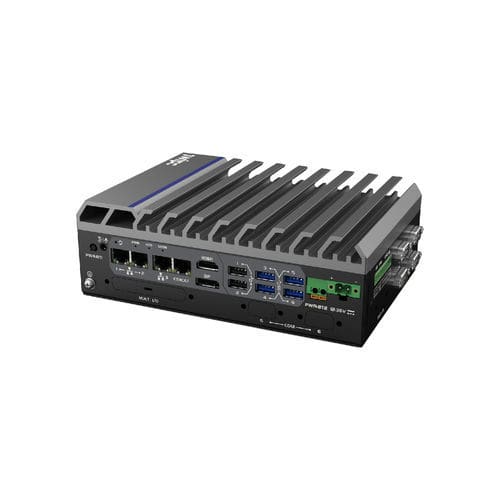

The JEC-5310 is an industrial-grade BOX PC supporting 11th Gen Intel® low-power CPUs, offering strong performance and a wide range of interfaces. It provides multiple storage and expansion options, supports various wireless connections, and features excellent network and display capabilities. Equipped with industrial-grade protection, it is ideal for a variety of industrial applications. BIOS - AMI UEFI BIOS I/O interface GPIO 8 bit digital I/O LED 1xPower, 1xHDD Graphics - Graphics Processor - Intel®UHD Gen.11 Graphics Engines Audio - Audio IC - Realtek ALC897 Audio Interface - 1xMic-in, 1xLine-out（2 in 1） LAN IC - 3x i226V, 1x i210AT Power Power Input 12V to 36V, DC-in Power Interface 2-Pole Phoenix DC plug in Others Watchdog Timer 1 to 255 sec./min. per step TPM Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions 200.4mm(L)×140.4mm(W)×52.7mm(H) Weight 1.8KG N.W. Environment Operating Temp. - -10~60℃w/ 0.7m/s airflow Storage Temp. -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
