Expansion PC JEC-3020

boxdesktopembedded

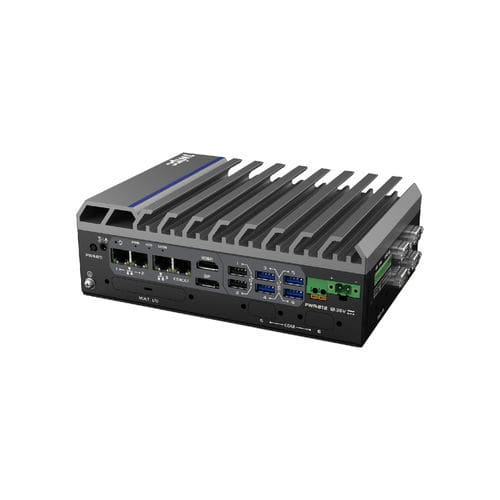

The JEC-3020 is an industrial-grade BOX PC featuring the Intel® Elkhart Lake J6412 processor, offering ultra-low power consumption and high cost efficiency. The product is designed with a fanless cooling system and an aluminum alloy chassis, making it suitable for applications with high dust, vibration, and interference. It includes a variety of interfaces, such as HDMI and DP display outputs, four Gigabit Ethernet ports, 4G/5G expansion support, and multiple USB and COM ports. BIOS AMI UEFI BIOS I/O interface GPIO 8bit GPIO, Phoenix terminal LED 1xPower, 1xHDD others 1x I²C Expansion Graphics Graphics Processor - Intel®UHD Gen.10 Graphics Engines Audio Audio IC - Realtek ALC897 Audio Interface - 1xMic-in, 1xLine-out（2 in 1） LAN IC 3xi226V，1xi210AT Power Power Input 12V to 36V, DC-in Power Interface 2-Pole Phoenix DC plug in Others - Watchdog Timer 1 to 255 sec./min. per step TPM Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions 200.4mm(L)×140.4mm(W)×52.7mm(H) Weight - 1.79KG Environment - Operating Temp. - -10~60℃w/ 0.7m/s airflow Storage Temp. -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
