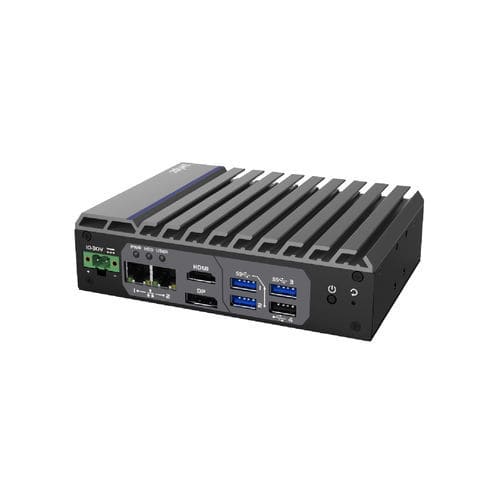

Expansion PC JEC-3010

boxdesktopembedded

The JEC-3010 industrial BOX PC features Intel® Elkhart Lake series processors, offering ultra-low power consumption and excellent cost-effectiveness. The fanless design with an aluminum die-cast chassis provides efficient heat dissipation and durability, making it suitable for applications with heavy dust, vibration, and strong interference. With extensive expansion options and high-speed transmission, the system meets the needs of various complex scenarios. BIOS AMI UEFI BIOS I/O interface LED 1xPower, 1xHDD, 1xUser Graphics Graphics Processor - Intel®UHD Gen.10 Graphics Engines Audio Audio IC Realtek ALC897 Audio Interface - 1xMic-in, 1xLine-out（2 in 1） LAN IC - 2x i226V Power Power Input 10V to 30V, DC-in Power Interface 2-Pole Phoenix DC plug in Others Watchdog Timer 1 to 255 sec./min. per step TPM Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions 150mm(L)×107mm(W)×41.1mm(H) Weight - 0.8KG Environment Operating Temp. -10~60℃w/ 0.7m/s airflow Storage Temp. -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
