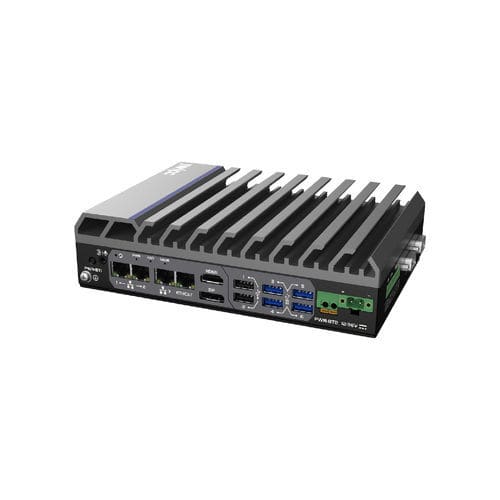

Expansion PC JET-3020

boxdesktopwall-mounted

The JET-3020 industrial BOX PC is equipped with an Intel® Elkhart Lake J6412 quad-core low-power CPU and supports up to 32GB of DDR4 memory. It offers multiple expansion options, including M.2 slots for 4G/5G wireless connections and WiFi/BT modules, expanding its application range. The system features four high-speed RJ45 Ethernet ports and USB ports, ideal for connecting high-definition video devices. Additionally, the JET-3020 supports various display modes and resolutions, and utilizes high Tg wide-temperature PCB material to ensure stability in wide-temperature environments. BIOS AMI UEFI BIOS I/O interface GPIO - 8bit GPIO, Phoenix terminal LED - 1xPower, 1xHDD Graphics Graphics Processor Intel®UHD Gen.10 Graphics Engines Audio - Audio IC Realtek ALC897 Audio Interface - 1xMic-in, 1xLine-out（2 in 1） Ethernet - LAN IC - 3xi226V，1xi210AT Power Power Input 12V to 36V, DC-in Power Interface - 2-Pole Phoenix DC plug in Others Watchdog Timer 1 to 255 sec./min. per step TPM - Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions - 200.4mm(L)×140.4mm(W)×68.7mm(H) Weight 1.93KG Environment - Operating Temp. -10~60℃w/ 0.7m/s airflow Storage Temp. - -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
