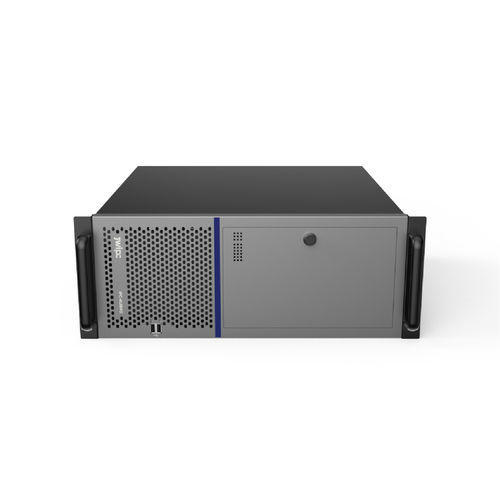

Expansion PC IPC-4U840-W

artificial intelligencedesktoprack-mount

4U 19" standard rack-mounted industrial computer with Intel® W580 chipset, XXidon W-1390P CPU and 750W ATX power supply, supporting multiple serial ports, USB, and PCI/PCIE expansion. It can be widely used in deep learning, artificial intelligence, machine vision (such as automated inspection, automatic image analysis and processing), automated production and inspection. BIOS - AMI UEFI BIOS Graphics card - Intel CPU integrated display controller I/O Interface LED - POWER LED，HDD LED Drive Bay 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions Audio - Audio Codec Realtek ALC897 Audio Interface - Support MIC-In, Speaker-Out, Line-In three-hole audio Power supply - Power Input Equipped with standard ATX 750W power supply Power Interface - Support ATX/AT switch mode Watchdog Timer Supports configuration via in-board USB Dongle TPM Onboard encryption chip SLB9670(SLB9672) support TPM2.0(default) / BOM Optional TCM chip System Fan - Standard 1*12025 Fan, 2*6025 Fan Physical parameters Dimensions 430mm ×178mm ×450mm (W x H x D) Weight - 15KG Working environment Operating Temp. 0℃～45℃ Storage Temp. -40℃～55℃ Humidity Working relative humidity 20%～80%，Non-operating relative humidity 20%～93%(40℃) Shock Working status: 1Grms@5~500Hz , Non-working status：2Grms@5~500Hz Vibration 3 directions, 10G(11ms half sine wave), 3 times/direction
