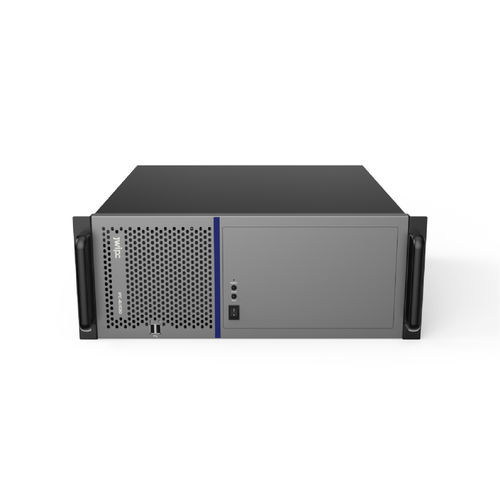

Expansion PC IPC-4U830-Q

artificial intelligencedesktoprack-mount

4U 19" standard rack-type industrial computer, using Intel® Q570 chipset, equipped with 500W ATX power supply, support multiple serial ports, USB, and PCI/PCIE expansion, can be widely used in artificial intelligence, machine vision (such as automated inspection, automatic image analysis and processing), automated production and inspection. Chipset Intel® Q570 Chipset BIOS - AMI UEFI BIOS Graphics card Intel CPU integrated display controller I/O Interface LED POWER LED，HDD LED Drive Bay 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions Audio Audio Codec - Realtek ALC897 Audio Interface - Support MIC-In, Speaker-Out, Line-In three-hole audio Power supply - Power Input - Standard ATX 500W power supply Power Interface - Support ATX/AT switch mode Watchdog Timer Supports configuration via in-board USB Dongle TPM - No onboard encryption chip System Fan - Standard configuration: 1 12025 fan, 1 6025 fan, with dust filter Physical parameters - Dimensions - 430mm ×178mm ×450mm (W x H x D) Weight - 15KG Working environment Operating Temp. - 0℃～45℃ Storage Temp. -40℃～55℃ Humidity Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃) Shock Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz Vibration 3 directions, 10G (11ms half sine wave), 3 times/direction
