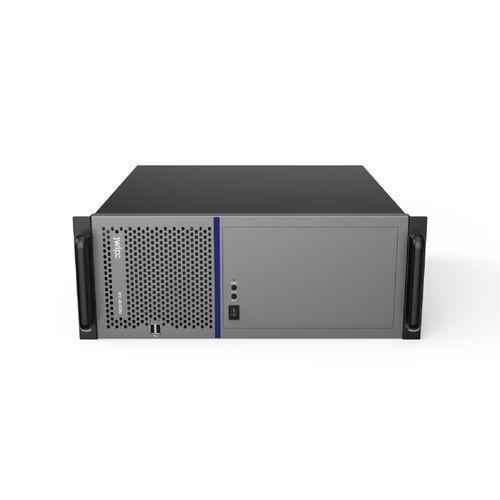

Expansion PC IPC-4U830-B

desktoprack-mountIntel® Core i3

4U 19" standard rack industrial computer, using Intel® H110 chipset, equipped with 300W ATX power supply, support multiple serial ports, USB, and PCI/PCIE expansion, can be widely used in 3C, semiconductor, laser and other automatic production and testing. Chipset Intel® H110 chipset BIOS - AMI UEFI BIOS Graphics card - Intel CPU Integrated display controller I/O Interface LED - POWER LED，HDD LED Interface - Drive Bay - 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions Audio Audio Codec - Realtek ALC897 Audio Interface Support Mic-in, Spk-out; reserved front panel audio pin F_Audio on the board Power supply - Power Input - Standard ATX 300W power supply Power Interface Support ATX/AT switch mode Watchdog Timer Supports configuration via in-board USB Dongle TPM - Support LPC interface TPM module expansion System Fan Standard configuration: 1 12025 fan, 1 6025 fan, with dust filter Physical parameters Dimensions - 430mm ×178mm ×450mm (W x H x D) Weight - 15KG Working environment Operating Temp. - 0℃～45℃ Storage Temp. -40℃～55℃ Humidity - Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃) Shock - 3 directions, 10G (11ms half sine wave), 3 times/direction Vibration Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz
