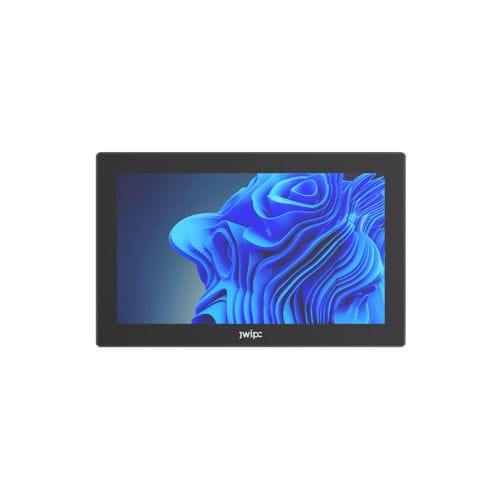

Multitouch screen panel PC IVS-185 series

resistive touch screencapacitive touch screenLED backlight

The IVS-185 is a high-performance integrated industrial panel PC featuring an 18.5-inch Full HD LED display with 10-point multi-touch functionality. It is powered by the latest Intel® processors and supports DDR4/DDR5 memory expansion up to 32GB, along with flexible storage options. The system offers a wide range of I/O interfaces, including multiple Ethernet ports and RS232/422/485 serial ports, and features a DC 12-36V wide voltage power design. Suitable for industrial and commercial environments, it supports both Windows and Linux operating systems. Core Count/Thread Count 4/4 2P+4E - 2P+8E Base Frequency 2.00 GHz 1.2 GHz 1.3 GHz 1.7 GHz Turbo Frequency - 2.60 GHz 4.4 GHz - 4.7 GHz Smart Cache 1.5 10 12 TDP - 10W 15W Storage 1 x M.2 2242/2280 SATA protocol 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 NVMe protocol 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 SATA protocol 1 x 7+15Pin SATA3.0 protocol interface Network 1x Intel I210AT,1 x Intel I226-v 3 x Intel I226-V, 1 x Intel I210AT Ethernet port (4 Ethernet ports optional with POE motherboard) I/O Interfaces 2 x optional RS232/422/485, 4xUSB3.0, 1 x remote switch 2 x optional RS232/422/485, 4xUSB3.2, 2x RS232 (optional), 1x remote switch Display Interface 1 * HDMI1.4b 1 x HDMI1.4b，1 x DP1.2 - Aspect Ratio - 16:9 Luminance 250 cd/m2 Contrast Ratio - 1000:1 Environment - Operating Temperature（OP） 0 ~ 50 ℃(32~122 ℉) Operating Relative Humidity - 95% @ 40 ℃ (non-condensing) Storage Temperature (NOP) - -20 ~ 60 ℃ (-4 ~ 140 ℉) Shock Resistance (OP) 15g 11ms half-sine wave Vibration Resistance (OP) 5~500Hz 1Grms EMC CE Class A
