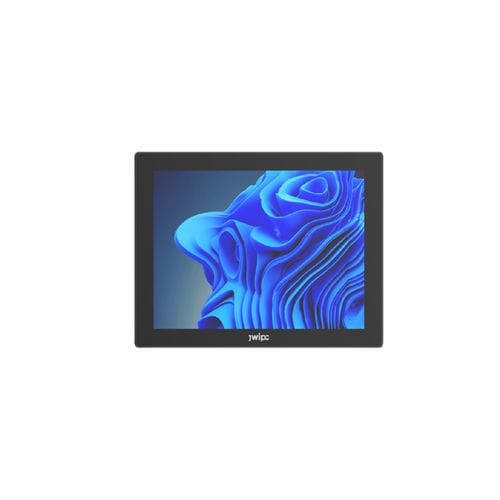

Multitouch screen panel PC IVS-150 series
resistive touch screenLCDPCAP capacitive touch screen

Multitouch screen panel PC - IVS-150 series - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen
Multitouch screen panel PC - IVS-150 series - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen
Multitouch screen panel PC - IVS-150 series - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 2
Multitouch screen panel PC - IVS-150 series - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 3
Multitouch screen panel PC - IVS-150 series - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
LCD, PCAP capacitive touch screen, resistive touch screen, multitouch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Celeron® J6412, Intel® Core i5, Intel® Core i7, Intel® Core i3, 7th Generation Intel® Core™ i7, 8th Generation Intel® Core™, 6th generation Intel® Core™, 9th Generation Intel® Core™, Intel® Core i5-1235U, Intel® Core i7-1255U, Intel® Core i3-1215U
Memory
DDR5 SO-DIMM, DDR4 SO-DIMM
Operating system
Linux, Windows 10, Windows 7, Windows 11
Construction
fanless, modular
Applications
industrial
Protection level
IP65, waterproof
Other characteristics
WiFi
Memory size

16 GB, 32 GB

Description

IVS-150 | 15 inch integrated industrial tablet computer (IVS-150 | 15 inch integrated industrial tablet series), based on the modular design of capacitive/resistive touch screen, 15 inch fanless industrial tablet computer, with waterproof, dustproof and other features; IVS-150 can select different configuration motherboards according to customer needs, and the products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Core Count/Thread Count 4/4 2P+4E 2P+8E Base Frequency 2.00 GHz 1.2 GHz 1.3 GHz 1.7 GHz Turbo Frequency 2.60 GHz 4.4 GHz 4.7 GHz Smart Cache 1.5 10 12 TDP 10W - 15W LCD Screen Aspect Ratio - 4:3 Luminance - 350 cd/m2 Contrast Ratio - 1000:1 Backlight Life 50000 h Angle of View - 89 (left), 89 (right), 89 (top), 89 (bottom) Luminousness - Above 81% (resistive screen > 80%) Lifespan 50 million touches (resistive single point 10 million touches) Power Requirements Input Voltage DC 12-36V, supports reverse polarity/short circuit/overvoltage/overcurrent protection Physical Specifications Dimensions - 360 mm x 284 mm x 71 mm (thickness with modules II and III is 79 mm) Weight - TBD Environment Operating Temperature(OP) When using standard temperature storage memory, operating temperature is 0 ~ 50 ℃(32~122 ℉) When using wide temperature storage memory, operating temperature is -20 ~ 60 ℃ (-4 ~ 140 ℉) Operating Relative Humidity 95% @ 40 ℃ (non-condensing) Storage Temperature (NOP) -20 ~ 60 ℃ (-4 ~ 140 ℉) Shock Resistance (OP) 15g 11ms half-sine wave Vibration Resistance (OP) 5~500Hz 1Grms EMC - CE Class A
