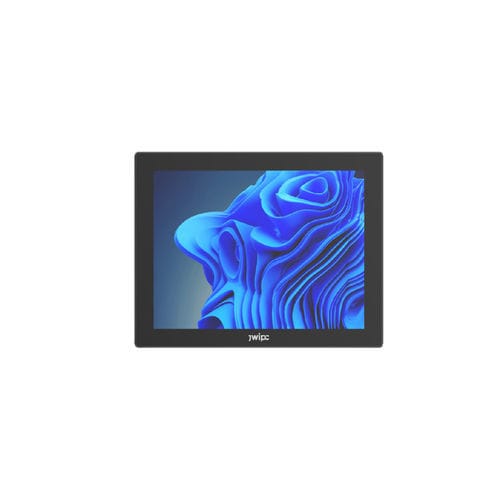

Multitouch screen panel PC IVS-121
resistive touch screenLCDPCAP capacitive touch screen

Multitouch screen panel PC - IVS-121 - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen
Multitouch screen panel PC - IVS-121 - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen
Multitouch screen panel PC - IVS-121 - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 2
Multitouch screen panel PC - IVS-121 - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 3
Multitouch screen panel PC - IVS-121 - JWIPC TECHNOLOGY CO., LTD. - resistive touch screen / LCD / PCAP capacitive touch screen - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
LCD, LED backlight, PCAP capacitive touch screen, resistive touch screen, multitouch screen
Display size
12.1"
Resolution
1024 x 768
Processor
7th Generation Intel® Core™ i7, Intel® Celeron® J6412, Intel® Core i5, Intel® Core i7, Intel® Core i3, 8th Generation Intel® Core™, 6th generation Intel® Core™, 9th Generation Intel® Core™, Intel® Core i5-1235U, Intel® Core i7-1255U, Intel® Core i3-1215U
Memory
DDR5 SO-DIMM, DDR4 SO-DIMM, DDR4 3200 MHz
Operating system
Linux, Windows 10, Windows 7, Windows 11
Construction
fanless, modular
Applications
industrial
Protection level
IP65, waterproof
Other characteristics
WiFi, PoE
Memory size

16 GB, 32 GB

Description

IVS-121 | 12.1-inch integrated Industrial tablet computer (IVS-121 | 12.1-inch integrated industrial tablet series), based on the modular design of capacitive/resistive touch screen 12.1 inch fanless industrial tablet computer, with waterproof, dustproof and other features; IVS-121 can select different configuration motherboards according to customer needs, and the products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Core Count/Thread Count 4/4 2P+4E - 2P+8E Base Frequency 2.00 GHz - 1.2 GHz 1.3 GHz 1.7 GHz Turbo Frequency 2.60 GHz - 4.4 GHz - 4.7 GHz Smart Cache 1.5 10 12 TDP 10W 15W Memory 1 x SO-DIMM DDR4-3200, supports up to 16GB 1 x SO-DIMM DDR5-4800, supports up to 32GB 1 x SO-DIMM DDR4-3200, supports up to 16GB Storage 1 x M.2 2242/2280 SATA protocol 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 NVMe protocol 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 SATA protocol 1 x 7+15Pin SATA3.0 protocol interface Network - 1x Intel I210AT,1 x Intel I226-v 3 x Intel I226-V, 1 x Intel I210AT Ethernet port (4 Ethernet ports optional with POE motherboard) Luminance 500 cd/m2 Contrast Ratio - 1200:1 Backlight Life 50000 h Angle of View - 88 (left), 88 (right), 88 (top), 88 (bottom) Luminousness Above 81% (resistive screen > 80%) Lifespan 50 million touches (resistive single point 10 million touches) Operating Relative Humidity 95% @ 40 ℃ (non-condensing) Storage Temperature (NOP) -20 ~ 60 ℃ (-4 ~ 140 ℉) Shock Resistance (OP) 15g 11ms half-sine wave Vibration Resistance (OP) 5~500Hz 1Grms EMC CE Class A
