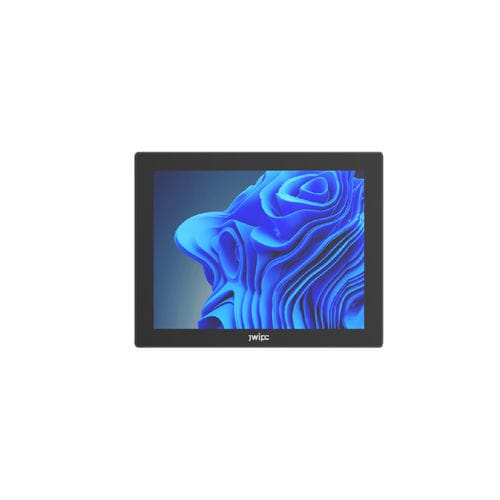

Resistive touch screen panel PC IVS-104 series

LCDPCAP capacitive touch screenLED backlight

IVS-104 | 10.4 inch integrated industrial tablet Computer (IVS-104 | 10.4 inch integrated industrial tablet series), based on the modular design of capacitive/resistive touch screen, 10.4 inch fanless industrial tablet computer, with waterproof, dustproof and other features; IVS-104 can select different configuration motherboards according to customer needs, and the products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Core Count/Thread Count - 4/4 2P+4E - 2P+8E Base Frequency 2.00 GHz 1.2 GHz 1.3 GHz 1.7 GHz Turbo Frequency 2.60 GHz 4.4 GHz - 4.8 GHz Smart Cache 1.5 10 - 12 TDP 10W 15W Memory 1 x SO-DIMM DDR4-3200, supports up to 16GB 1 x SO-DIMM DDR5-4800, supports up to 32GB 1 x SO-DIMM DDR4-3200, supports up to 16GB Aspect Ratio 4:3 Luminance 350 cd/m2 Contrast Ratio 900:1 Backlight Life 30000 h Angle of View - 75 (left), 75 (right), 75 (top), 75 (bottom) Luminousness Above 81% (resistive screen > 80%) Lifespan - 50 million touches (resistive single point 10 million touches) Power Requirements Input Voltage - DC 12-36V, supports reverse polarity/short circuit/overvoltage/overcurrent protection Physical Specifications Dimensions - 275X222x71 mm (thickness with modules III and IV is 79 mm) Operating Relative Humidity 95% @ 40 ℃ (non-condensing) Storage Temperature (NOP) -20 ~ 60 ℃ (-4 ~ 140 ℉) Shock Resistance (OP) 15g 11ms half-sine wave Vibration Resistance (OP) 5~500Hz 1Grms EMC CE Class A
