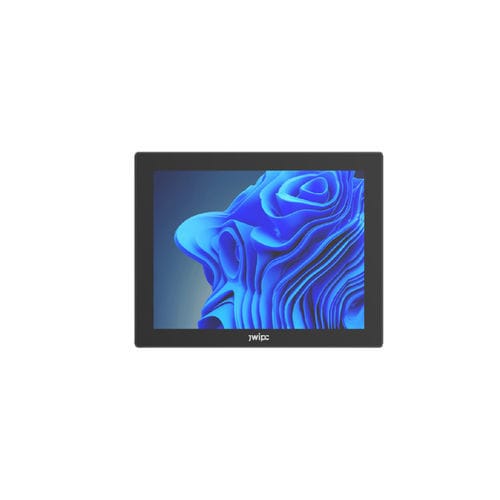

Resistive touch screen panel PC OVS-150 series

LCDPCAP capacitive touch screenLED backlight

Zhiwei Intelligent open video computing industrial tablet computer (OVS-150 series | 15 inch open industrial tablet series), based on the modular design of capacitive/resistive touch screen, 15 inch fanless industrial tablet computer, with waterproof, dustproof and other features; Ovs-150 can flexibly select different configurations according to customer needs, without changing the original design, replacing the OVS module can be quickly upgraded or maintained; Products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Storage 1 x M.2 2242/2280 SATA protocol interface 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 Nvme Protocol Interface 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 SATA Protocol I/O Interface 2 x optional RS232/422/485 4 x USB3.0 , 1 x SIM card slot, 1 x remote switch 2 x optional RS232/422/485 , LCD Display - Proportion - 4:3 brightness 350 cd/m2 Contrast 1000:1 Backlight life 50,000 hours Perspective 89 (left), 89 (right), 89 (top), 89 (bottom) Transmittance More than 81% ( resistive screen >80%) life cycle - 50 million times ( 10 million times for single resistor point) Power - Input voltage - DC 12-36V, RVP/SCP/OVP/OCP Environment Operating temperature ( OP ) 0 ~ 50 °C (32 ~ 122 °F)，When using normal temperature storage memory -20 ~ 60 °C (-4 ~ 140 °F)，When using wide temperature storage memory Working relative humidity 95% @ 40 °C (non-condensing) Storage Temperature ( NOP ) -20 ~ 60 °C (-4 ~ 140 °F) Impact resistance ( OP ) 15g 11ms half sine wave Anti-vibration ( OP ) 5~500Hz 1Grms EMC CE Class A
