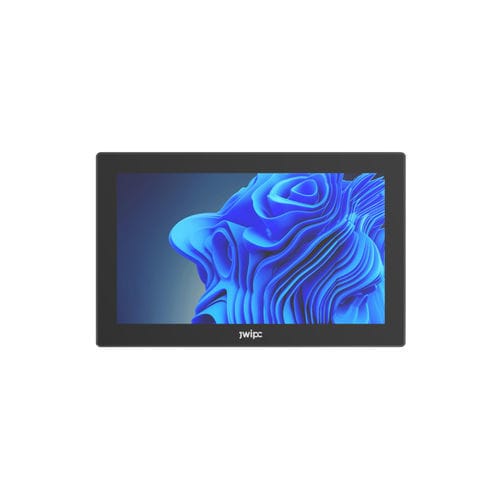

LCD monitor TDS-215 series

multitouch screenresistive touch screenPCAP capacitive touch screen

The TDS-215 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows for flexible modules that are waterproof and dust-proof. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring. Proportion 16: 9 Brightness 220 cd/m2 Contrast - 1000:1 Backlight life 30,000 hours Perspective - 89 (left), 89 (right), 89 (top), 89 (bottom) Light transmittance More than 81% Life 50 million times Power Requirements Input voltage DC 12-36V, RVP/SCP/OVP/OCP Power <25W Driver board Signal input HDMI, VGA, DVI-D OSD Menu Menu / Up / Down / Auto Adjust / Power Switch Brightness , Contrast , Screen Settings , Color Temperature , Language Settings Mechanical Size 532.5x324x58mm Weight Environment Working relative humidity 95% @ 40 °C (non-condensing) Storage Temperature (NOP) -20 ~ 60 °C (-4 ~ 140 °F) Impact resistance (OP) 15g 11ms half sine wave Anti-vibration (OP) - 5~500 Hz 1Grms EMC CE Class A
