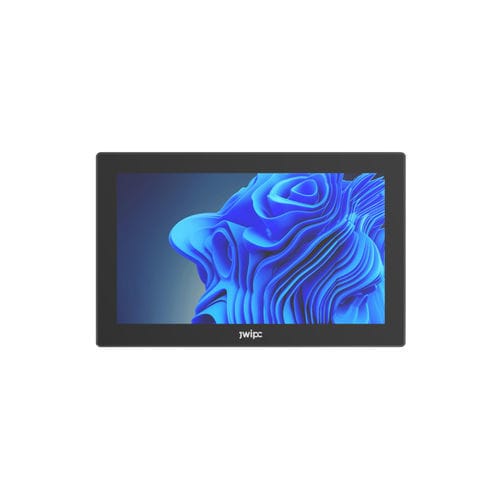

LCD monitor TDS-185 series

multitouch screenLED backlight5-wire resistive touch screen

The TDS-185 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows for flexible modules that are waterproof and dust-proof. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring. - Aspect ratio - 16:9 Luminance (cd/m2) - 250 cd/m2 Contrast Ratio 1000:1 Backlight Life 30000 hours Viewing Angle - 89 (L), 89 (R), 89 (U), 89 (D) Transmittance >81% (>78% for 5-Wire Resistive) Lifecycle 50 Million Times (10 Million Times for 5-Wire Resistive) Power Power Input DC 12-36V, RVP/SCP/OVP/OCP TDP TBD Driver Board OSD menu - Menu/UP/Down/AUTO Setting/Power Brightness, Contrast Ratio, Setting, Color Temperature, Language Mechanical - Dimensions (L×W×H)(mm) 470x290x58mm Weight TBD OS Environment Operating Relative Humidity 95% @ 40 °C (non-condensing) Storage Temperature (NOP) -20 ~ 60 °C (-4 ~ 140 °F) Shock (OP) 15g 11ms Half Sine Wave Vibration (OP) 5~500Hz 1Grms EMC CE Class A
