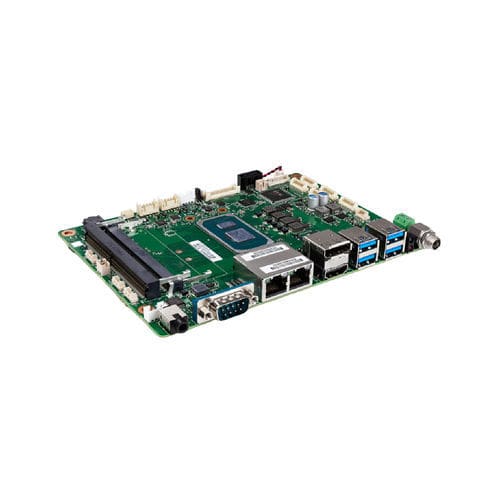

4" single-board computer AIoT4-TGU series

Intel® Celeron® 6305E1th Gen Intel® Tiger Lake-UP3 i3-1115G4EIntel® Core™ i7-1185G7E

The AIoT4-TGU is a 4-inch embedded single board computer that supports Intel® 11th Tiger Lake-U series CPUs, offering diverse interfaces and powerful performance. It features multiple display outputs, high-speed network connectivity, rich storage options, and expansion capabilities, making it suitable for various industrial application scenarios. This product has an industrial-grade protective design and an optional wide temperature range to meet the demands of harsh environments. Chipset Intel Tiger Lake UP3 SOC Display controller - Integrated Core Graphics: Intel UHD Graphics for 11th or Iris Xe Graphics (depending on CPU) Audio - Support Mic-in+Line-out (single-hole 2-in-1); Support digital audio output with power amplifier (3W, 4Pin wafer) I²C/I²S/SMBus 3 x I2C 1Mbps, 1 x SMBus, 4Pin wafer Digital I/O 8-bit digital I/O interface (1x10Pin wafer) TPM/TCM - The on-board encryption chip SLB9670 supports TPM2.0 Operating temperature and humidity When using room temperature memory and storage: -10°C~60°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa When using wide temperature memory and storage: -40~70°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa Non-operating temperature and humidity - Temperature: -40°C~85°C; The relative humidity is 5%~95% (40°C), and the atmospheric pressure is 85~105kPa Watch Dog 255 levels of programmable seconds per minute with support for timeout interrupt or system reset BIOS - AMI UEFI BIOS Power DC+12V~24V anti-screw DC-Jack (optional 2Pin Phoenix terminal) power indicator, storage indicator PCB dimensions (L*W) 4 inch：168mm(W)×120mm(D)
