Foldable pallet box

wire meshhandlingstorage

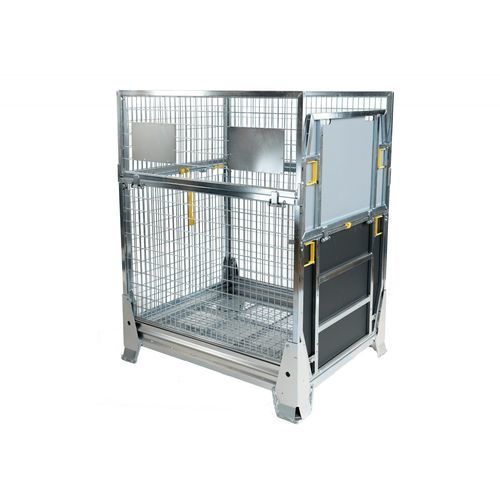

This standard footprint foldable cage can be used for line hauls between sorting centres and inbound flows from large business customers. In addition to compatibility with robotic handling and 100% automatic tipping its design support efficient one-man manual handling. Ability to double stack units is a standard feature as it is the only way to reach higher truck fills. It is equipped with half-drop down gates for safe unloading. The self-guiding corner posts make it easy to stack the units with a forklift. Special locks on the gates enable automatic tipping.The short side made of honeycomb panels helps the packages to glide during tipping. It can also be taken down and be used as a ramp. Technical specification • Internal dimensions : 1403 x 950 x 1130 mm • Unit tare weight : 121 kg • Safe working load : 1000 kg • Loaded units / 13,5m trailer : 26 • Stacked units / 13,5m trailer : 156 • Stacking incremental height : 346 mm • Max stacking (empty) : 6 high • Max stacking (loaded) : 1 high • Finish : Zinc electroplate
