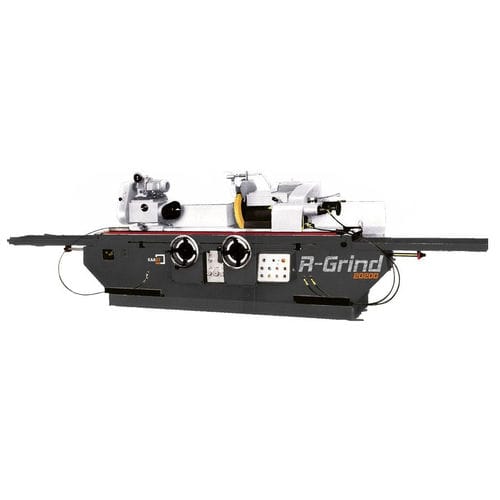

Cylindrical grinding machine R series

for large workpiecesmanually-controlled3-axis

Our high-performance manual cylindrical grinders are built with high-quality Meehanite cast iron with heavy ribbing to ensure high overall stiffness, even with heavy workpieces. A precision grinding spindle bearing ensures the highest accuracy. The belt-driven spindle stock with adjustable speed ensures continuous optimal conditions for grinding. Automatic lubrication of the headstock is standard on all models. The hydraulically driven table feed features softstop at the end of the movement. All feed rates are infinitely variable ensuring a high-quality surface finish. Rapid approach/withdrawal of the grinding wheel. The hydrostatic bearing of the spindle produces a film of oil between the bearing and the spindle. This eliminates vibration and provides high precision and surface quality, also increasing the service life of the spindle. RC-Grind • Light duty for diameters up to 12” and lengths up to 40” R-Grind • Medium duty for diameters up to 19” and lengths up to 40” RC-Grind HD • Heavy duty for diameters up to 31” and lengths up to 156” Standard Configuration Grinding wheel Grinding wheel flange 3-jaw chuck Diamond dresser Backsplash guard Flange removal device Dressing device Coolant system Tailstock with lever operation Balancing arbor Leveling pads and bolts Tool kit Operation manual Optional Configuration Internal grinding unit(Standard on RC-Grind) Coolant system with paper filter and magnetic separator 3-jaw chuck (self-centering) 4-jaw chuck Balancing stand 2-point steady rest Radii dressing device Angle dressing device Grinding wheel (extra) Grinding wheel flange (extra) 3-axis digital readout
