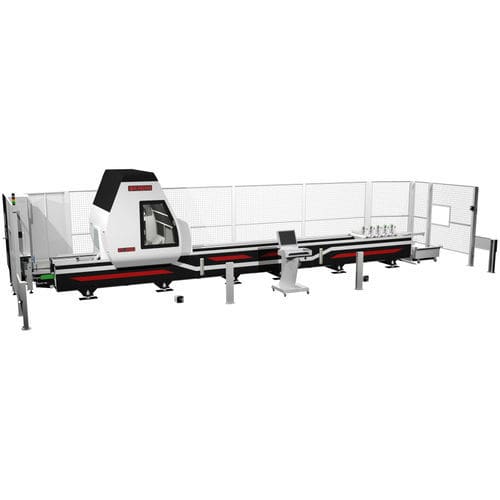

5-axis CNC machining center ZC 3052

verticalfor steelfor aluminum

Highlights - Robust mechanical structure suitable for high speed - Axis velocities whose average exceed 100 m/min - Profiling length 7630 mm - Double station profiling length 3615 mm x 2 - Machinable profile section size 450 x 300 mm - Number of clamps is 10 - Spindle motor 11-13.5 kW 24,000 rpm - The number of magazine sets is 12 pieces - Ø 400 mm saw - Mitsubishi CNC control unit - Automatic tool length measuring - Automatic positioning vices - Automatic tool recovery in case of power failure Design - Mechanical structure that can process aluminum and steel profiles at high speed and high quality - Stress relieved cast and welded parts to ensure consistent high speed accuracy - Axis velocities whose average exceed 100 m/min - Milling, notching, drilling, threading, countersinking, cutting, etc. ability - Machining length in single station operation 7630 mm - Machining length in double station operation 3615 mm x 2 - Machinable profile section size 450 x 300 mm - Coolant spray system Control Panel - Versatile adjustable, ergonomic kiosk - 19'' screen - User-friendly Kaban interface with Windows-based, easily adjustable parametric structure - Compatibility with .NCX extension software - High performance 4+1 axis Mitsubishi CNC control unit - Communication via Ethernet - Working with G-Code - Data transfer via USB and COM Port Spindle - Servo-controlled positioning with increased torque - Liquid cooled 8.5 kW 24,000 rpm spindle with thermostat sensor - Tool cooling system with oil-air mixture spray speed adjustment, liquid level sensor - Tool holder and tool holder cleaning system - Tool change safety protocols written to minimize operator errors as much as possible
