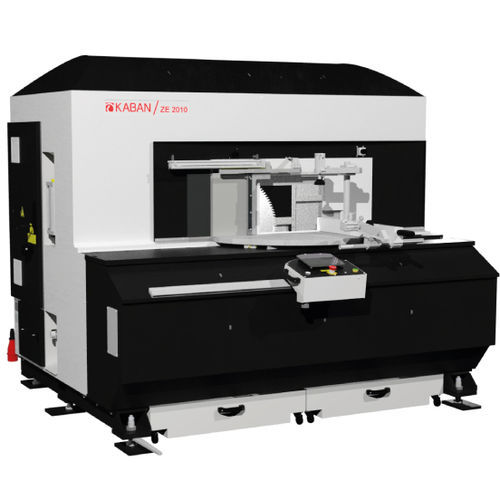

Vertical milling machine ZE 2010

for aluminumindustrialhigh-performance

Highlights - High performance aluminum profile lapping machine with wide cutting range - Ideal for difficult applications in the manufacture of facade profiles, winter gardens, domes and special constructions. - Thanks to the movable saw unit and the processing of the fixed profile, it provides high precision and low space requirement. - High precision thanks to servo-controlled saw positioning - Saw diameter 650 mm - Maximum profile size that can be processed is 300 x 300 mm - Maximum machinable notch height 240 mm, maximum notch depth 240 mm - Pneumatically controlled support table with linear guide, angle adjustment and optimum efficiency from the cutting area - Coolant spray system - After the notching process, the mounting connection holes can be opened with a Ø4 mm drill. Design - Carries out notching operations on aluminum facade and joinery profiles. - It is a high performance aluminum profile lapping machine with wide cutting range. - Ideal for difficult applications in the manufacture of facade profiles, winter gardens, domes and special constructions. - Thanks to the movable saw unit and the processing of the fixed profile, it provides high precision and low space requirement. - Thanks to its wide back gauge, it provides the opportunity to process multiple profiles at the same time. - There is a pneumatically controlled support table with linear guide, angle adjustment and optimum efficiency from the cutting area. - Profiles can be connected horizontally or vertically. - Saw cooling is performed with the pulverized lubrication system. - Saw positioning has high precision thanks to its servo controlled feature.
