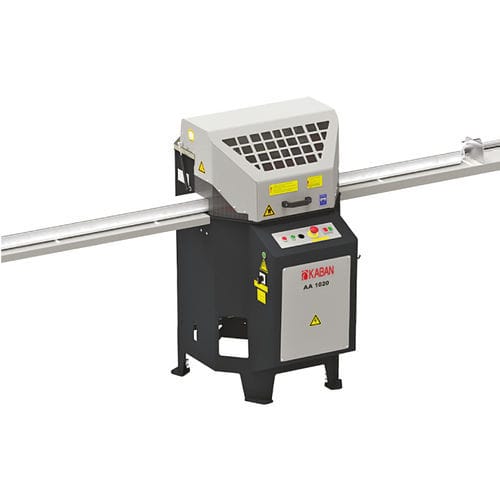

Rotary blade cutting machine AA 1020for PVCfor PVC profilesfor industrial applications
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for PVC
- Product handled
- for PVC profiles
- Applications
- for industrial applications
- Configuration
- single-head
- Other characteristics
- automatic, high-speed, manual, mechanical, 45°, 90°
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 6 bar
(87.02 psi)- Overall length
6,655 mm
(262 in)- Overall width
912 mm
(36 in)- Height
1,279 mm
(50 in)- Weight
260 kg
(573.2 lb)
Description
Highlights
- Robust mechanical structure suitable for high speeds
- Ø 400 mm saw
- Vertical bearing system for precise angle adjustment
Design
- Mechanical structure that can cut PVC profiles at high speed and quality
- Cut at angles between 20° and 160°
- Fixed angle of 45° / 90° / 45° with profile supports
- 2 pieces top press pistons for fixing profile
- Profile support table with manual measuring system
- Left profile support table
- Safety cover
Saw
- Ø 400 mm saw
- Saw speed 3300 rpm
- Adjustable saw feed speed
Safety
- Automatic protection cover
- Dual-hand safety system
- Safety labels
