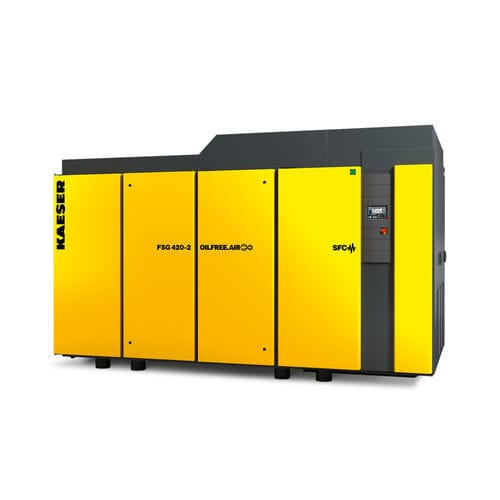

Rotary compressor FSG-2
airelectrically-poweredstationary

rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
rotary compressor
Add to favorites
Compare this product


Characteristics

Technology
rotary
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Other characteristics
compact, air-cooled, variable-speed, with frequency converter
Pressure

6 bar, 8 bar, 10 bar
(87.02 psi, 116.03 psi, 145.04 psi)

Flow

Max.: 50 m³/min
(1,765.73 ft³/min)

Min.: 29.2 m³/min
(1,031.19 ft³/min)

Power

Max.: 355 kW
(482.67 hp)

Min.: 160 kW
(217.54 hp)

Length

3,650 mm
(144 in)

Width

2,075 mm
(82 in)

Height

2,730 mm
(107 in)

Weight

Max.: 8,450 kg
(18,629.1 lb)

Min.: 6,250 kg
(13,778.9 lb)

Noise level

74 dB, 75 dB, 76 dB, 77 dB

Description

Durable yet refined drive and cooling solutions enable us to achieve lowest possible power consumption values. This, in combination with a Kaeser heat recovery system, also allows you to significantly reduce your heating costs. We'd be glad to help you with a solution that meets your exact needs. Thanks to their compact design and type-dependant small exhaust air duct, our water-cooled oil-free compression rotary screw compressors earn extra points when it comes to installation in low-ceiling areas. Also available with integrated i.HOC rotation dryer Your advantages Extraordinarily low compressed air discharge temperature: The tube bundle of the two air/water heat exchangers consists of high-quality CuNi10Fe pipes with welded-on aluminium star profile for optimal heat conduction. Lower costs thanks to heat recovery: With a Kaeser heat recovery system, up to 96% of compressor exhaust heat can be recycled – for example, to heat water to 90 °C. Maintenance-friendly: The air/water heat exchangers of the 1st and 2nd compression stages are housed in two separate enclosures, each with optimal accessibility thanks to large service doors. Complete package Ready for operation Fully automatic Silenced Vibration-damped Service-friendly design For ambient temperatures up to +45 °C Airend Two-stage, oil-free compression rotary screw compressor with precision gearing as per AGMA Q13/DIN-Class 5 2nd compression stage uses stainless steel rotors and jacket cooling Rotors feature durable coating
