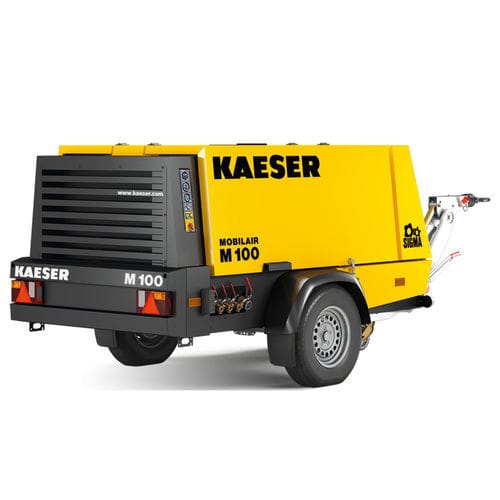

Screw compressor M100
airdiesel-poweredmobile

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel-powered
Portability
mobile
Lubrication
lubricated
Application domain
industrial
Other characteristics
heavy-duty
Tank volume

140 l
(37 gal)

Pressure

7 bar, 10 bar, 12 bar, 14 bar
(101.53 psi, 145.04 psi, 174.05 psi, 203.05 psi)

Flow

6.4 m³/min, 7.2 m³/min, 8.5 m³/min, 10.6 m³/min
(226.01 ft³/min, 254.27 ft³/min, 300.17 ft³/min, 374.34 ft³/min)

Power

71.7 kW
(97.48 hp)

Length

Max.: 4,615 mm
(182 in)

Min.: 4,025 mm
(158 in)

Width

1,790 mm
(70 in)

Height

1,525 mm
(60 in)

Weight

1,480 kg, 1,550 kg, 1,560 kg
(3,262.8 lb, 3,417.2 lb, 3,439.2 lb)

Description

The MOBILAIR portable compressors in this series are exceptionally versatile. Optionally available with synchronous generators and/or compressed air treatment components, they are also offered in a variety of maximum pressure variants, thereby ensuring that the perfect model is always available for every application. What's more, transporting these powerful all-rounders is a simple and convenient matter. KAESER portable compressors are equipped with lifting eyes as standard; they can also be specified as stationary versions equipped with skids or machine feet, making them the perfect choice for any operating location. MOBILAIR portable compressors can be used wherever the key requirements are efficiency and durability. These powerful all-rounders excel when working on blasting applications and crash barrier construction. The optional generator transforms these machines into a portable power plant for the whole construction site. Your benefits: Compressed air and electrical power The generator function eliminates the need for a separate power supply to operate your pneumatic and electrical tools or lighting. Easy-to-read display Operating pressure can be conveniently adjusted via the SIGMA CONTROL MOBIL 2's touchscreen, even when wearing unwieldy work gloves. Additionally it provides a clear overview of all operating data. Reliability with excellent value retention MOBILAIR portable compressors are well equipped for the demands of heavy-duty and continuous operation in construction site environments. They perform reliably and safely even under harsh climatic conditions.

Catalogs

No catalogs are available for this product.

See all of KAESER Kompressoren‘s catalogs
