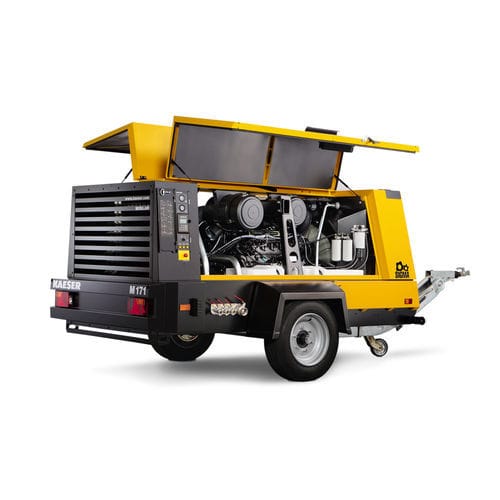

Screw compressor M series
airdiesel-poweredmobile

Screw compressor - M series  - KAESER Kompressoren - air / diesel-powered / mobile
Screw compressor - M series  - KAESER Kompressoren - air / diesel-powered / mobile
Screw compressor - M series  - KAESER Kompressoren - air / diesel-powered / mobile - image - 2
Screw compressor - M series  - KAESER Kompressoren - air / diesel-powered / mobile - image - 3
Screw compressor - M series  - KAESER Kompressoren - air / diesel-powered / mobile - image - 4
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel-powered
Portability
mobile
Lubrication
oil-injected
Application domain
industrial
Tank volume

20 l, 200 l
(5.3 gal, 52.8 gal)

Pressure

Max.: 14 bar
(203.05 psi)

Min.: 8.6 bar
(124.73 psi)

Flow

Max.: 17 m³/min
(600.35 ft³/min)

Min.: 10.5 m³/min
(370.8 ft³/min)

Power

122 kW, 128 kW, 129 kW
(165.87 hp, 174.03 hp, 175.39 hp)

Length

Max.: 5,275 mm
(208 in)

Min.: 4,890 mm
(193 in)

Width

2,100 mm
(83 in)

Height

1,805 mm
(71 in)

Weight

2,500 kg, 2,600 kg, 2,800 kg
(5,511.6 lb, 5,732 lb, 6,172.9 lb)

Description

Compact, powerful and versatile – Performance is more than a promise with diesel-driven MOBILAIR portable compressors from KAESER. As true powerhouses of the MOBILAIR range, these oil-injected portable compressors combine exceptional performance with compact design. The necessary power is provided by EU emission level V engines to ensure dependable and environmentally-friendly operation. These versatile machines can be perfectly adapted to meet the needs of the specific application thanks to a wide range of optional treatment components that always deliver the required compressed air quality. Furthermore, the generously-sized fuel tank ensures impressive construction site staying power. When full, the fuel tank has sufficient capacity to last an entire work shift. These diesel-driven compressors also feature dynamic ‘pV control’ to provide incredible flexibility, meaning that one and the same system can deliver pressures between 6 and 14 bar. This makes them ideal for cable blowing and drilling, for blasting work and concrete processing, as well as for providing backup air in opencast mining and industrial applications. Your benefits Compressed air with integrated electric power supply: The generator function eliminates the need for a separate power supply to operate your pneumatic and electrical tools or lighting. Clean and oil-free compressed air: Depending on the specific application, MOBILAIR portable compressors can also be equipped with microfilter combinations for technically oil-free compressed air, such as required for blasting applications as per German ZTV-ING regulations.
