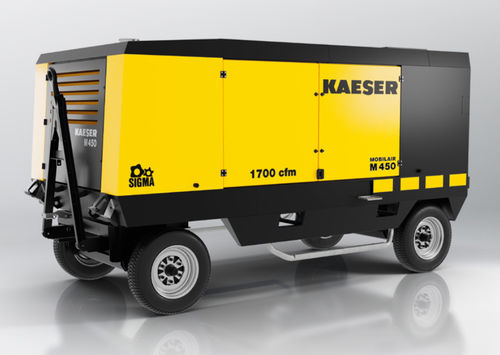

Screw compressor M450
airdiesel enginemobile

Screw compressor - M450 - KAESER Kompressoren - air / diesel engine / mobile
Screw compressor - M450 - KAESER Kompressoren - air / diesel engine / mobile
Screw compressor - M450 - KAESER Kompressoren - air / diesel engine / mobile - image - 2
Screw compressor - M450 - KAESER Kompressoren - air / diesel engine / mobile - image - 3
Screw compressor - M450 - KAESER Kompressoren - air / diesel engine / mobile - image - 4
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel engine
Portability
mobile
Lubrication
oil-injected
Application domain
industrial
Other characteristics
compact
Tank volume

900 l
(237.8 gal)

Pressure

7 bar, 8.6 bar, 10 bar, 12 bar, 14 bar
(101.53 psi, 124.73 psi, 145.04 psi, 174.05 psi, 203.05 psi)

Flow

37.7 m³/min, 43.9 m³/min, 44.6 m³/min, 48.1 m³/min
(1,331.36 ft³/min, 1,550.31 ft³/min, 1,575.03 ft³/min, 1,698.64 ft³/min)

Power

360 kW
(489.46 hp)

Length

4,758 mm, 4,875 mm, 5,029 mm, 6,381 mm
(187 in, 192 in, 198 in, 251 in)

Width

2,177 mm, 2,220 mm
(86 in, 87 in)

Height

2,055 mm, 2,064 mm, 2,117 mm, 2,493 mm
(81 in, 81 in, 83 in, 98 in)

Weight

6,177 kg
(13,618 lb)

Description

Compact, powerful and versatile – Performance is more than a promise with diesel-driven MOBILAIR portable compressors from KAESER. As true powerhouses of the MOBILAIR range, these oil-injected portable compressors combine exceptional performance with compact design. The necessary power is provided by EU emission level V engines to ensure dependable and environmentally-friendly operation. These versatile machines can be perfectly adapted to meet the needs of the specific application thanks to a wide range of optional treatment components that always deliver the required compressed air quality. Furthermore, the generously-sized fuel tank ensures impressive construction site staying power. When full, the fuel tank has sufficient capacity to last an entire work shift. These diesel-driven compressors also feature dynamic ‘pV control’ to provide incredible flexibility, meaning that one and the same system can deliver pressures between 6 and 14 bar. This makes them ideal for cable blowing and drilling, for blasting work and concrete processing, as well as for providing backup air in opencast mining and industrial applications. Your benefits Compressed air with integrated electric power supply: The generator function eliminates the need for a separate power supply to operate your pneumatic and electrical tools or lighting. Clean and oil-free compressed air: Depending on the specific application, MOBILAIR portable compressors can also be equipped with microfilter combinations for technically oil-free compressed air, such as required for blasting applications as per German ZTV-ING regulations.
