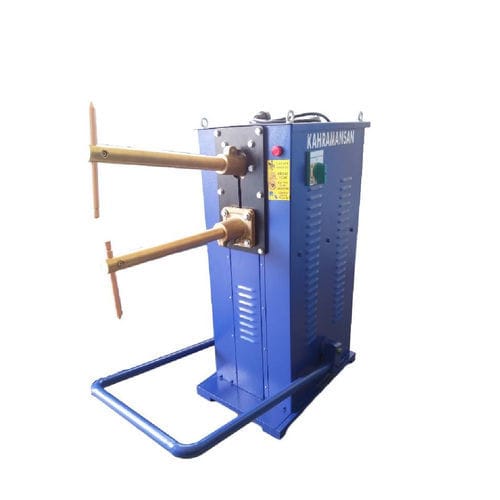

Spot welding machine KAP10manualstandalonefor metal
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- manual
- Configuration
- standalone
- Applications
- for metal
- Power supply
- 380V three-phase, 220V single phase
- Other characteristics
- compact, electric, CE, water-cooled, three-phase, cost-effective, custom, single-phase, high-power, precision
- Power
15,000 W
- Output frequency
50 Hz
Description
The KAP series spot welders are compact and robust welding machines. It is available in both rotary cam switch and digital microcontroller to adjustment of power level. This type of spot welder is mainly used in automotive and furniture industry or other metal field.
Technical Specifications:
Model: KAP10
Operated: Pedestal
Power: 10KVA
Welding Capacity: 1.5+1.5mm mild steel
Input Voltage: 220V/380V (50Hz)
Protection Fuse: 220V-40A / 380V-25A
Power Level: 5
Arm Length: 500mm
Arm Diameter: 40mm
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 380mm x 1000mm x 1050mm
Weight: 142Kg
VIDEO
