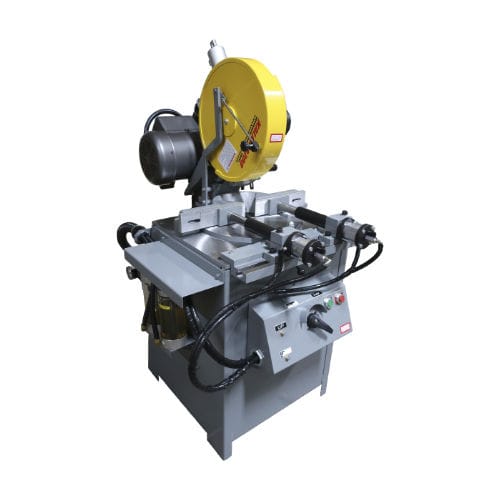

Circular saw HSM14 miterfor aluminumfor non-ferrous materials
Add to favorites
Compare this product
Characteristics
- Technology
- circular, miter
- Treated material
- for aluminum, for non-ferrous materials, for brass, for plastics
- Applications
- for the automotive industry
- Operational mode
- semi-automatic
- Other characteristics
- high-speed
- Circular saw blade diameter
14 in
Description
HSM14 high speed non-ferrous mitre saw is designed to material such as brass, aluminum and plastic with the correct high speed blade quick and efficient with right high speed blade.
• 5HP, 3ph, 3450 rpm motor.
• 4400 spindle speed.
• 1″ spindle arbor.
• Magnetic controls with 24V low voltage protection at on/off push buttons.
• Power down feed. Air over oil 0-12 FPM. Semi-automatic. 40 – 50 psi required.
• Double v-belt drive.
• All steel construction!
• Double air vises that open up 6″ with movement Left/right and front/back.
• OSHA safety blade guard (Clam Shell Guard).
• Mitres left and right to 45deg.
• Capacities: 4-1/2″ pipe and square.
• Shipping dimensions: L 44″ x W 40″ x H 65″.
• Shipping weight: 750 lbs.
• 3PH amp draws: 230V 12 amps and 440V 6 amps.
• 1PH amp draw: 19.5 amps.
