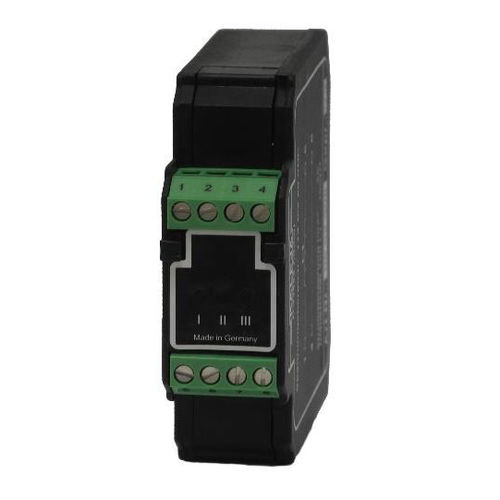

Motor choke Maxi-IM-5-60

DCDIN railEMI suppression

Motor choke with the following functions: - for brushed motors - compact size - mountable on DIN rail - robust and closed housing To snap onto the DIN rail EN 50022 ThemoduleMaxi-IM-5-60 is a motor choke for brushedmotors. In most cases, thismoduleis only necessary in conjunction with a PWM motor controller. Using this module provides the following advantages: lower currrent peaks Di/ Dt, better EMC properties ofthe system, less heating in the motor, in-rush current is reduced. If a motor is used which hasvery low-impedance and has a low armature inductance, it is possible that the motor control detects ashort circuit although none is present. By using this module, the short circuit detection can be improved inthis case
