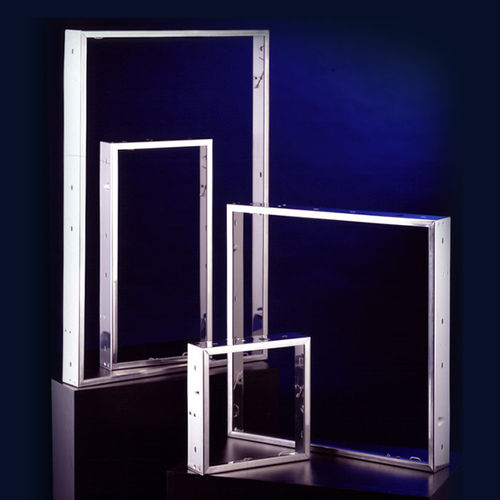

An important supplementary product for air filters is the universal installation frame. It is used for the fixing of the air filters in the system.
A tension spring mechanism presses the air filter against a gasket, ensuring freedom from leaks up to filter class F9.
Application:
installation of bag-type filters, panel filters and compact filters
installation of filters in ventilation systems
Description
1.5 mm strong sendzimir-galvanised sheet steel or
1.25 mm strong stainless steel
Design
fixed tension spring
for front frame depths between 20-50 mm
centring for central alignment of filters
flat profile gasket or insert profile gasket
installation depth: 75 mm
Advantages
high holding force of fixed springs
mounting accessories for filter wall or V-shaped filter design available
usable up to filter class F9
