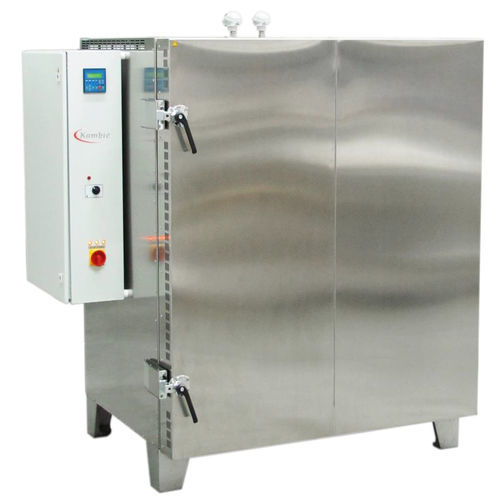

Chamber oven SP seriescuringheat treatmentstainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- chamber
- Function
- curing, heat treatment
- Other characteristics
- stainless steel
- Maximum temperature
Min.: 10 °C
(50 °F)Max.: 600 °C
(1,112 °F)- Capacity
64 l, 190 l, 400 l, 875 l
(16.91 gal, 50.19 gal, 105.67 gal, 231.15 gal)- Width
400 mm, 600 mm, 750 mm, 998 mm
(15.75 in, 23.62 in, 29.53 in, 39.29 in)- Height
400 mm, 600 mm, 700 mm, 1,250 mm
(15.75 in, 23.62 in, 27.56 in, 49.21 in)- Depth
400 mm, 543 mm, 700 mm, 755 mm
(15.75 in, 21.38 in, 27.56 in, 29.72 in)
Description
Heat treatment, surface treatment, curing all at precise temperature:
• Heat treatment for stress release
• Heat treatment for sintering
• High temperature drying
• Molds preheating
• Fills curing
AISI 304 Stainless steel chamber, designed for temperatures up to 600 °C
Fully enclosed design with Stainless steel AISI 304 exterior
Chamber door with floating inner isolative door ensuring low surface temperature even at max temperature
Heavy duty Closing mechanism with adjustable position / closing force
Height adjustable shelves (additional shelves as accessorie)
High capacity fan for air circulation in chamber Ensuring temperature stability and uniformity
Main switch with power phase indicator
Adjustable Over temperature shut-out
PLC based controller. Simple and effective programming of all process steps, and optional manual controls. RS-232, USB or Ethernet communication port
Exhaust opening with adjustable flange for air exchange
