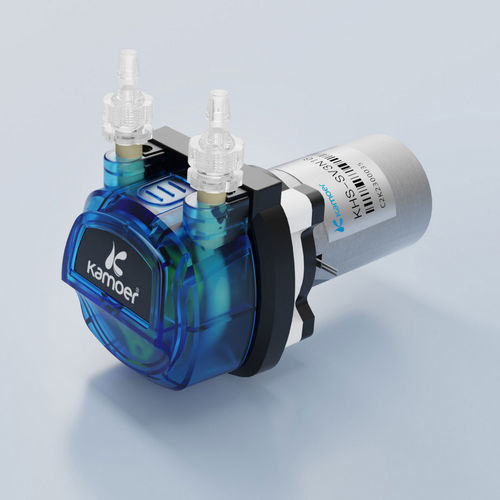

Peristaltic pump KHS waterwith brushless DC motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- water
- Operation
- with brushless DC motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the food industry, medical
- Applications
- transfer, process
- Material
- plastic, PA
- Fluid specification
- for viscous fluids
- Voltage
- 24 V, 12 V
- Other characteristics
- compact, brushless
- Flow
Max.: 0.26 m³/h
(9.18181 ft³/h)Min.: 0.2 m³/h
(7.06293 ft³/h)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Input diameter
3.2 mm, 4 mm
(0.126 in, 0.157 in)- Output diameter
6.4 mm, 7.2 mm
(0.252 in, 0.283 in)- Length
101 mm
(4 in)- Width
54.2 mm
(2.13 in)- Height
68 mm
(2.68 in)
Description
★ Compact structure
★ Suitable for viscous, non-viscous liquid transfer
★ Exquisite high-end appearance, color can be customized
★ Plastic gear drive, cost-effective
xBasic Parameters
Motor: Brush / Brushless Motor
Humidity: ＜ 80%
Pump Tube Selection: Norprene tube / Silicone tube
Mounting plate: Through plate fixation / L plate installation
Transmission Mode: planetary gear transmission, reduction ratio 1:8
Main Material: PC cover plastic cover, pump body PA, gear for the synthesis of engineering plastics.
Various Applications
# Experiment Analysis
# Filling
# Classification
# Food processing
▲ Triangular synchronous dis fixed rotor
Designing gear structure in synchronous disk by industrial triangulation law.
Stable and effective, prevent pump tube slippage.
▲ Threaded joint, self-locking fastening
No air leakage, no need to tie the hose clamp
If you want Threaded Joint, please contact our customer service to note the demands for you.
