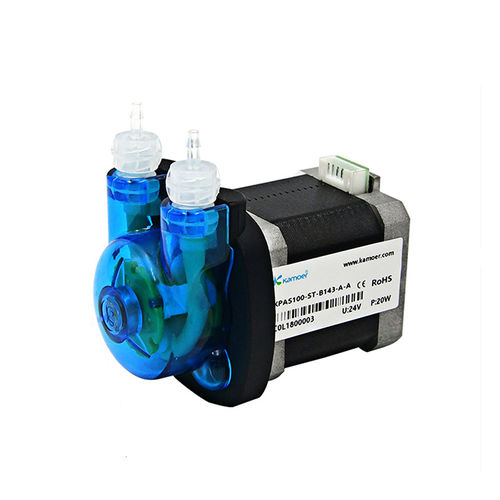

Peristaltic pump KPAS100

for chemicalsstepper motor-drivenself-priming

KPAS100 series peristaltic pump is a stepper motor driven peristaltic pump Pump tube selection - The pump tube adopts imported BPT (B) tube and silicone tube (S), which can be applied to different transmission liquid requirements, Pump tube size is optional (14#, 19#, 16#) peristaltic pump tube to meet different flow requirements The pump body comes with a 4-hole mounting plate, no need to add a separate one 3 rotor transmission, moderate pulse Installation method - The installation method is fixed through the plate. In addition, the pump head adopts a quick-release type, and the orientation of the pipe joint can be selected in any direction of up, down, left, and right. Transmission mode - planetary friction reduction transmission Fits 1.6 wall thickness pump tubing Applications Analytical instruments: trace element analyzer, chemiluminescence analyzer, miniature water quality automatic monitoring station, digital printing machine ★ Suitable for the transfer of viscous and non-viscous liquids ★ Compact structure and high maintainability ★ A variety of pump tube materials are available ★ Exquisite and high-end appearance, high cost performance Basic Parameters Motor: Stepper motor Current: 1.2A Rotating speed: 350rpm Roller: 3 rotors Humidity: Less than 80% Pump material: PA & Nylon Features Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.
