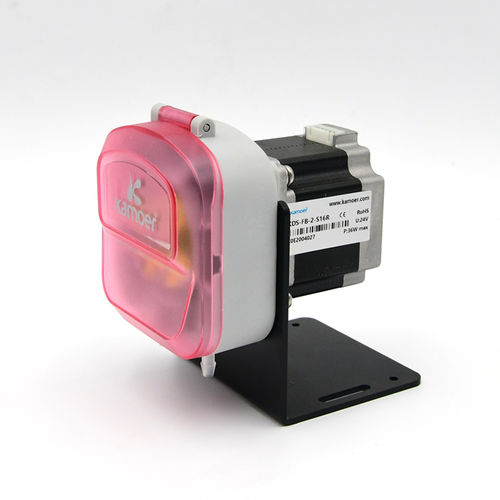

Peristaltic pump KDS-ST

waterfor chemicalswith DC motor

★ Suitable for viscous, non-viscous liquid transmission ★ Capable of transferring liquid containing particles ★ Thicker tubing wall to withhold higher pressure ★ Longer service time with resilient tubing ★ Lowest level of noise ★ Branded and patented product ★ Colorful and custom appearance for you to choose ▲ Color: Red; Yellow; Green; Blue Basic Parameters Motor: DC motor Code: FC/FE Voltage: 24V/12V Current: 0.28A/0.56A Flow: 340-380 ml/min Rotor: 2 rotors Tube: Silicon tube/PharMed BPT/Norprene tube Customize: Yes Temperature: 0~40℃ Humidity: Less than 80℃ Net Weight: About 0.75 KG KDS Motor Introduction ▲ KDS series peristaltic pump have four kinds motors： AC synchronous gear motor (FA) Stepper motor(FB) 24V/12V DC brush motor (FC/FE) AC shaded-pole motor(FD) Various Applications ▲ Cleaning equipment ▲ Environmentally water treatment ▲ Dish-washing facilities ▲ Analytical instrument ▲ Washing hands adding liquid ▲ House appliances ▲ Separation liquid equipment ▲ Scientific experiments ▲ This pump have two ways of fixation, supporting it or sticking a wear through it. These two installation methods make it applicable in different working places. Four directions of pipe joint is acceptable, as shown in the following picture.
