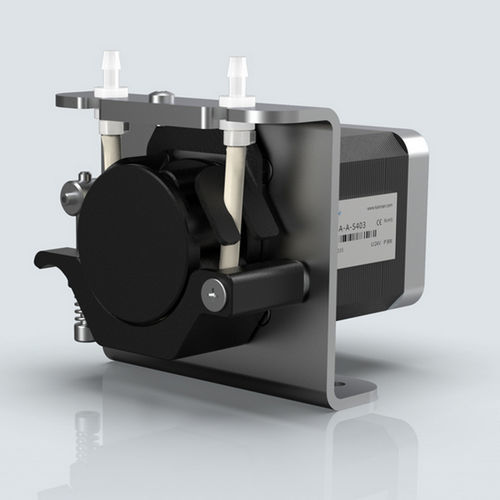

Peristaltic pump KCS-Plus series

for chemicalsstepper motor-drivenself-priming

KCS PLUS peristaltic pump is a peristaltic pump driven by a stepper motor, the input voltages can be 24V / 12V. Tube There are two options for the tube, PharMed®BPT (B) or silicone tube (S). Different type of tubes are applicable to different liquid. There are also several sizes of tube can choose to meet different flow or accuracy requirements. Installation Two different ways of Installation (see attached photos). Accuracy KCS plus peristaltic pump has changeable rotors. There are 2 options: 4 rotors or 8 rotors. More rotors will lead a higher accuracy and a lower flow rate. Material: Shell buckle, synchronous disk are synthetic plastic, sheet metal and machined parts are the SUS304 stainless steel Additional Advantage: The pump can be detected by EMC and ground test. Features Applicable to viscosity, non-viscous liquid transport High precision, small pulsation Panel can be placed outside and pass the ground test. Simple structure, high reliability Easy to replace the tube Imported motor with excellent performance
