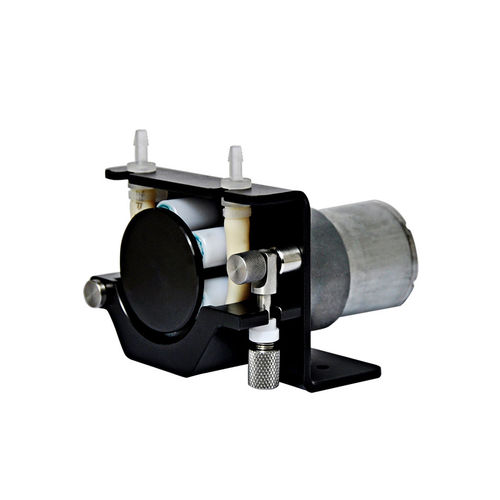

Peristaltic pump KCS waterfor chemicalswith DC motor
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals
- Operation
- with DC motor
- Priming
- self-priming
- Technology
- peristaltic
- Mobility
- stationary
- Domain
- industrial, chemical, for the food industry, for laboratories, medical
- Applications
- high-precision
- Voltage
- 24 V, 12 V
- Other characteristics
- low-noise, mini pump
- Flow
Max.: 0.352 l/min
(0.09299 us gal/min)Min.: 0 l/min
(0 us gal/min)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Input diameter
Max.: 2.8 mm
(0.11 in)Min.: 0.8 mm
(0.031 in)- Output diameter
Max.: 7.2 mm
(0.283 in)Min.: 3.4 mm
(0.134 in)- Length
75 mm, 81 mm
(3 in, 3 in)- Width
66 mm, 70 mm
(2.6 in, 2.76 in)- Weight
540 g
(19.05 oz)
Description
KCS series peristaltic pump tube is wall thickness of 1.6mm or 0.85mm
The number of KCS (wall thickness 1.6mm) series peristaltic pump rotor is optional,three rotors and six rotors.
KCS series peristaltic pump is divided into KCS DC motor peristaltic pump and KCS stepper motor peristaltic pump.High transmission, low interference, low noise, excellent temperature, Long lifetime,controllable flow rate.
Note: The more rotors, the smaller the pump pulse.
Features
Changable tubings
Clockwise and anti-clockwise rotations
High precision
Low noise
Weight：540g
Environment temperature range：0-40℃（0 to 104℉）(Note: Freezing must be prevented)
Ambient humidity range：＜80% RH
(Please leave us message about installation method,or we will send you "code A", thanks)
