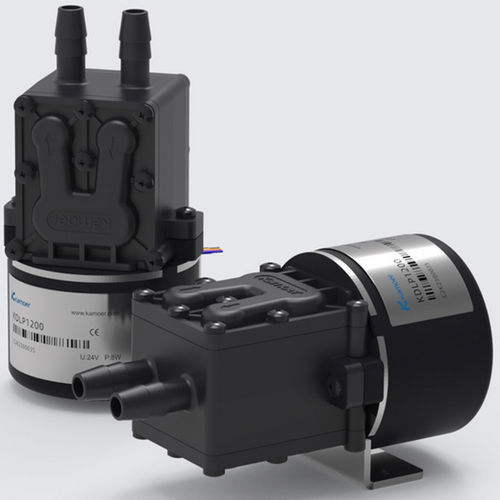

Diaphragm pump KDLP1200

for chemicalswith brushless DC motorself-priming

Appearance patent, compact design, low pulsation Pump head material PPS Rubber material EPDM High pressure, large flow Simple design, beautiful and generous Long-life brushless motor Basic Parameters Voltage:12V 24V Motor: Brushless Motor Pressure: 0.5Mpa Power: 10W Length: Only 10.5cm Lifetime: 3000H Max Sunction: ≥1（Data from Kamoer Lab） Vasious Applications Injet Printer City Dust Removal Spray Truck Rainforst Spray Leaf Fertilizer Spray suitable for many scenes. More Details High power and high pressure. The liquid pressure can reach 0.5Mpa. White wire: PWM 1. Brushless wiring full speed operation Red wire + white wire connected to the positive pole, black wire connected to the negative pole, yellow wire is not connected. 2.PWM speed control board wiring Red wire connects positive, black wire connects negative, white wire connects PWM speed control, yellow wire does not connect.
