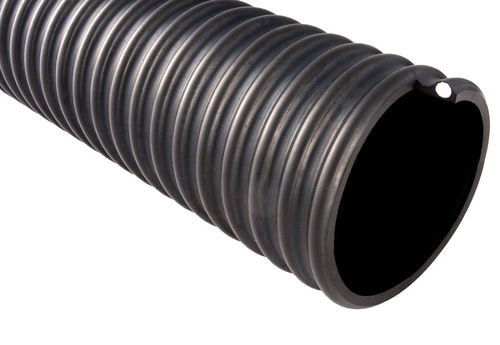

SBR hose S-180for bulk materialsfor abrasive productsfor sand
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials, for abrasive products, for sand
- Material
- SBR
- Applications
- for vacuum, for suction units
- Other characteristics
- flexible, wear-resistant, lightweight, weather-resistant, with smooth inner surface, anti-static, corrosion-resistant, PVC spiral, PVC casing
- Inner diameter
Max.: 203.2 mm
(8 in)Min.: 50.8 mm
(2 in)- Outer diameter
Max.: 229.6 mm
(9.039 in)Min.: 59.8 mm
(2.354 in)- Pressure
Max.: 2.75 bar
(39.885 psi)Min.: 0.91 bar
(13.198 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)- Delivered length
15.5 m, 30 m
(50'10" , 98'05" )
Description
SBR rubber blended with carbon black, rigid PVC helix, smooth inside. Special polymers, anti-static and anti-abrasive. Diameter from 50 mm to 200 mm.
- Application: Aspirations of dry abrasive materials, stones, sand, carbon, chips and iron dust. - Heavy duty abrasion resistant suction hose for vacuum trucks or handling abrasives.
- Ultra light and flexible. Due to its formulation, it is not necessary copper wire. (UNE 21-303-83). Conductivity measurements through the hose <108 Ohms. Marked as ῼ/T in line with requirements of BS EN ISO 8031.
- Abrasion, corrosion and weathering resistant.
Catalogs
No catalogs are available for this product.
See all of KANAFLEX SPAIN‘s catalogs
