Phase tester KANE-PU690VimpedancevoltageAC
Add to favorites
Compare this product
Characteristics
- Test type
- voltage, AC, impedance, phase, EMC
- Tested product
- battery
- Configuration
- portable, compact
Description

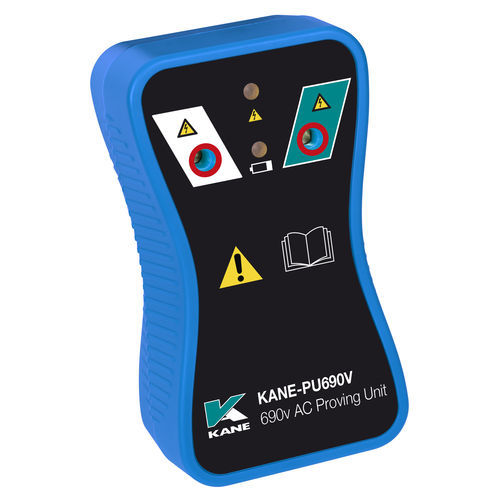

The KANE-PU690V proving unit is a 690V compact & lightweight voltage proving unit designed for compliance safety checking of voltage testers prior to testing on a live circuit
The KANE-PU690V is also high & low Z impedance compatible for proving voltage on multimeters
Features
AC Voltage output up to 690V
High & Low (Z) Impedance compatible
200k Ohm Load
Low battery indicaton
Portable & compact
Standards:
EN 61010-1 CATII 750V
EMC, LVD & RoHS
EN 61010-2-030
EN 61326-1
EN 61326-2-2
