- Piston pressure switch
- Kant Druckschalter GmbH

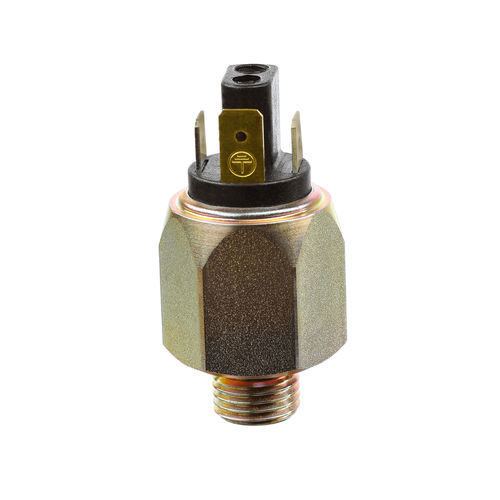

Piston pressure switch 804diaphragmNCM12 connector
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Contact type
- NC
- Electrical connection
- M12 connector
- Process connection
- NPT 1/4, G 1/4, G 1/8
- Fluid
- for water
- Material
- steel
- Applications
- for the food industry
- Other characteristics
- adjustable
- Pressure range
Max.: 200 bar
(2,900.75 psi)Min.: 0.2 bar
(2.9 psi)- Process temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
A Kant pressure switch Type 803 and 804 has an integrated N.C. / N.O. contact. When pressure is applied, a diaphragm is deformed or a piston is displaced via a lifting movement. The deformation or movement depends on an adjustable spring preload. When the switching point is reached, the diaphragm or piston has undergone a defined movement which actuates the switch and opens or closes the electrical circuit. Specific pressure values can be monitored via the switching signal.
Catalogs
TYPE 803 and 804
1 Pages
