- Diaphragm vacuum switch
- Kant Druckschalter GmbH

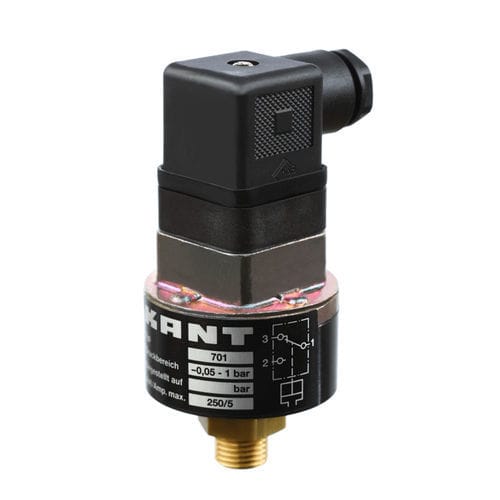

Diaphragm vacuum switch 701vacuumG 1/4for air
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- vacuum
- Process connection
- G 1/4
- Fluid
- for air, for oil
- Protection level
- IP55
- Applications
- for hydraulic applications
- Other characteristics
- adjustable
- Pressure range
Max.: 1 bar
(14.5 psi)Min.: 0.05 bar
(0.73 psi)- Process temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
A Kant vacuum switch Type 701 has an integrated electric change over switch. When a specific negative pressure is applied, a diaphragm is deformed. The deformation depends on an adjustable spring preload. When the switching point is reached, the diaphragm has undergone a defined movement which actuates the switch and opens or closes the electrical circuit. Specific pressure values can be monitored via the switching signal.
