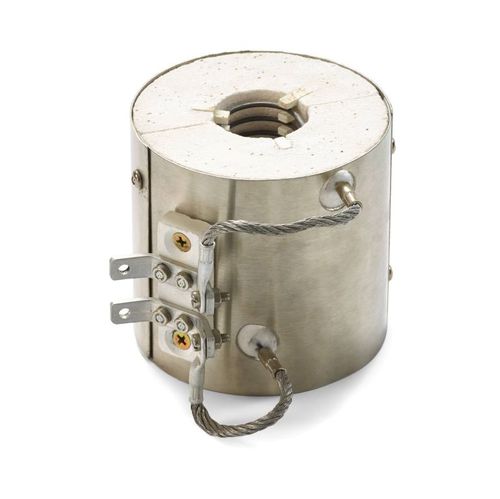

Tubular heating element SUPERTHAL® MINIceramic fiberstainless steelmolybdenum
Add to favorites
Compare this product
Characteristics
- Type
- tubular
- Material
- ceramic fiber, stainless steel, molybdenum
- Applications
- for medical applications
- Other characteristics
- compact
- Power
300 kW, 400 kW
(0.54 hp, 407.89 hp)- Maximum temperature
1,500 °C, 1,550 °C
(2,732 °F, 2,822 °F)
Description
Superthal® Mini is a complete compact heater ready to connect to the power supply. This product is used in melting and processing for the dental and medical industry and general material research and development. It is easy to control and can be rapidly heated up and cooled with a uniform temperature profile.
Reduced energy consumption
Precise temperature control
Uniform temperature distribution
The standard inner diameter is 26 or 31 mm (1 or 1.2 in), and the maximum element temperature 1550°C (2820°F), which corresponds to a furnace temperature of around 1500°C (2730°F).
Superthal® Mini is made of a Kanthal® Super molybdenum disilicide (MoSi2 ) heating element and an insulation high grade ceramic fiber. The stainless steel casing protects the heater and the electric contacts.
