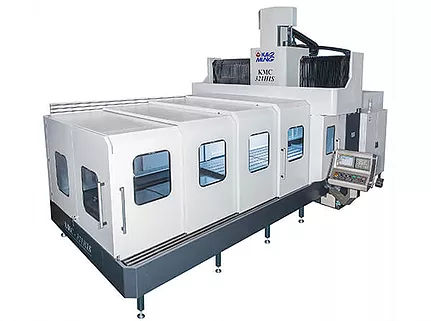

5-axis machining center KMC-HIS-5A seriesverticaldouble-columncutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Associated functions
- cutting
- Applications
- heavy-duty
- X travel
2,230 mm, 3,230 mm, 4,230 mm
(87.8 in, 127.17 in, 166.54 in)- Y travel
1,700 mm, 2,000 mm, 2,200 mm
(66.93 in, 78.74 in, 86.61 in)- Z travel
850 mm
(33.46 in)- Rotational speed
Min.: 60 rpm
(377 rad.min-1)Max.: 15,000 rpm
(94,248 rad.min-1)- Power
22 kW, 26 kW, 37 kW
(29.91 hp, 35.35 hp, 50.31 hp)
Description
The main feature is a ram-type casted spindle head which is supported by four LM guides and it ensures high rigidity and stability under heavy-duty cutting when the Z-axis travel moves up and down in the construction of BOX IN BOX.
X and Y axes use the oversize and maximum-preloaded roller liner guideways with high rigidity.
The spindle is the BUILT-IN drive.
This machine is coupled directly to the 22/26/30kw motor with extra amplifier can optionally provide 286Nm (max.) of cutting torque (S3 15%).
