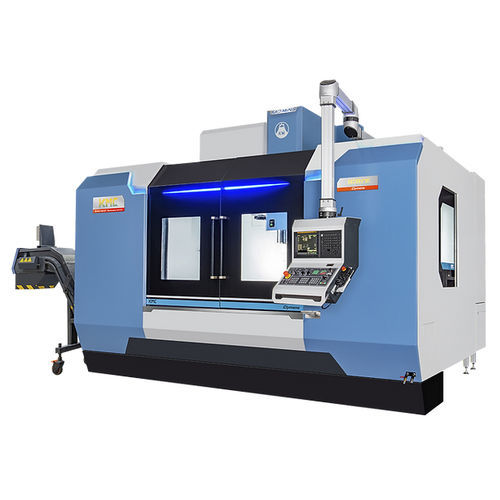

3-axis machining center KMC-CE
verticalBT 40BBT40

3-axis machining center
3-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40, BBT40
Other characteristics
high-speed
X travel

Max.: 1,600 mm
(62.99 in)

Min.: 1,100 mm
(43.31 in)

Y travel

Max.: 800 mm
(31.5 in)

Min.: 550 mm
(21.65 in)

Z travel

Max.: 800 mm
(31.5 in)

Min.: 610 mm
(24.02 in)

Rotational speed

10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)

Power

11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)

Description

Apply Japan's top brand linear guideway, THK, and increase sliders on all three axes to enhance loading capacity response time for machining. Different from the common box type with internal rib, utilize the keel design with stronger bending resistance.  Larger the table base to provide strong full support without overhang problem.  The design of the inner cooled ballscrew, coolant system in the bearing seat, and motor board with cooling circuit are to reduce thermal growth.  32-36 m/min unmatched rapid traverse rate beyond the industry average level. Increase the slope level of cover to enhance the chip removal capacity. from 1.2-1.7 tons meet different manufacturing needs. It can be applied to automobiles, home appliances die mold fine milling, and small workpiece manufacturing. KMC-CE

Catalogs

No catalogs are available for this product.

See all of KAO MING‘s catalogs
