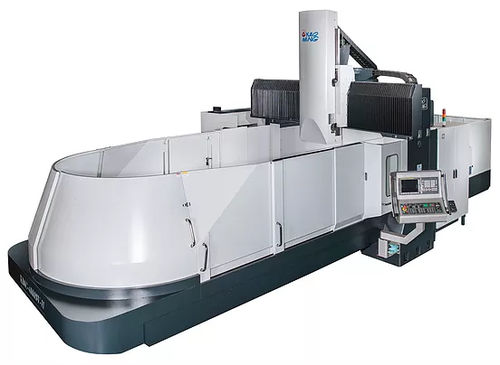

3-axis machining center KMC-SV seriesverticaldouble-columnmilling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Associated functions
- milling, drilling, cutting
- Applications
- deep hole
- X travel
Max.: 8,230 mm
(324.02 in)Min.: 2,230 mm
(87.8 in)- Y travel
Max.: 2,700 mm
(106.3 in)Min.: 1,400 mm
(55.12 in)- Z travel
850 mm
(33.46 in)- Rotational speed
3,200 rpm
(20,106 rad.min-1)
Description
The X, Y and Z axis are fully support by rigid box ways.
Two gear ranges, helical and spur gears support the spindle transmission system for machining large cavities at low RPM.
All surfaces that make contact with the slideways are lined with Turcite-B to ensure long lasting and optimum rigidity during heavy cutting conditions.
Extended spindle is standard accessories that applies to deep hole drilling and concave milling.
