Automatic loading and unloading system Ka-Ma OYBM

for CNC machinesfor panelsfor laser systems

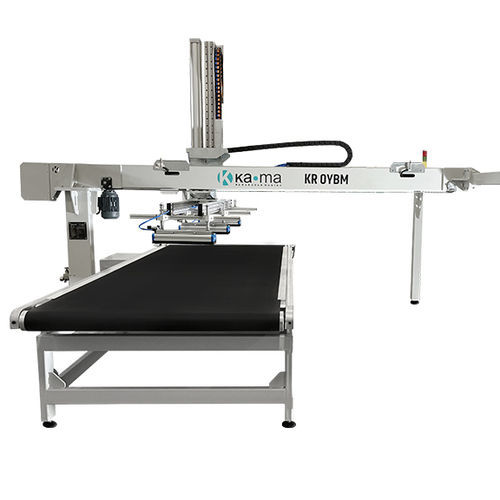

Automatic Loading & Off-loading Machine: KR OYBM The Automatic Loading & Unloading Machine, KR OYBM, streamlines the handling of products like doors, lids, panels, and similar items, reducing the need for manual labor and enhancing safety. This innovative machine enables the quick and effortless transfer of heavy materials that would typically require multiple individuals to lift, ensuring a damage-free and secure feeding process into your process. Moreover, it effectively eliminates the risks associated with irregular stacking during the feeding process, further enhancing operational efficiency. With different lifting arms that is avaliable for lifting up different materials, KR OYBM is a user-friendly robotic hand in your process. With different lifting arm design options available for lifting up various materials, the KR OYBM robotic hand is designed as a user-friendly machine in your processes. Technical Properties Weight: 950 kg Electricity consumption: 1,5 kW/h Length (With Wire Fencing): 4.700 mm Width (With Wire Fencing): 3.150 mm Height (With Wire Fencing): 2.400 mm Length (Without Wire Fence): 2.000 mm Width (Without Wire Fence): 2.200 mm Height (Without Wire Fence): 2.350 mm Air Consumption: 50 NL/min Air pressure: 6 bar Working Height (Effective): 3-200 mm Working Width (Effective): 150-1300 mm Working Length (Effective): Unlimited Conveyor Speed (Max): 8 m/min (Inverter Controlled)
