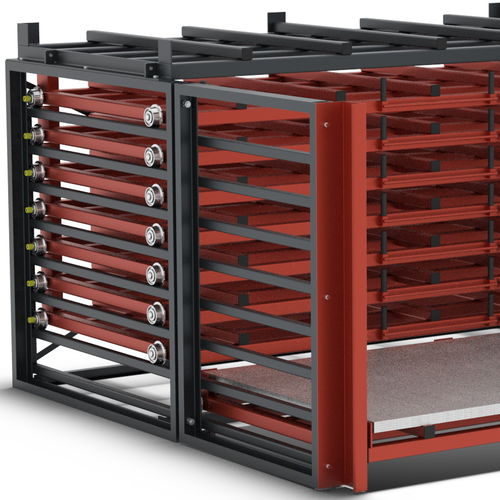

Storage warehouse shelving SRB

with shelvesdouble-sidedcustom

The drawer system for storage of sheet and plate material, tools and other products captivated by its stable, welded steel construction. The drawers can be safely and trouble-free manually extracted 100%, because they run on maintenance-free ball-bearing rollers. As standard, the drawers have an open floor, however, on request can be constructed with wooden planks or steel plates. The rack can be provided with storage space on the roof. The drawer rack for sheets has a space-saving folding projection. For payloads of more than 2.000 kg for each shelf, we recommend our mechanical roll-out aid or the electric drive. Advantages of the Drawer Rack for sheets • Custom-made: We produce according to your wishes • 100% access: You can extract the full length of the material from the rack • High load capacity: We produce your drawer rack with a load capacity of up to 5,000 kg per shelf • Protective handling: Even for sensitive sheets • Safe use of the drawers: Rod locking of each drawer when extended • Convenient handling: Thanks to the double-sided roller mechanism mounted in ball bearings Operation The ball-bearing mounted drawers are extracted on the guide rails of the open doors. Loading and unloading is done via crane, or forklift truck for the version with low support. As an option, also available with extracted on both sides. Design • Robust steel construction • Drawers on flange rollers in ball bearings – 100% extractable • Each drawer is protected by a rod locking system that secures the drawer when it is extracted • It is operated using the handle of the drawer
