Pallet turner

fixed180°

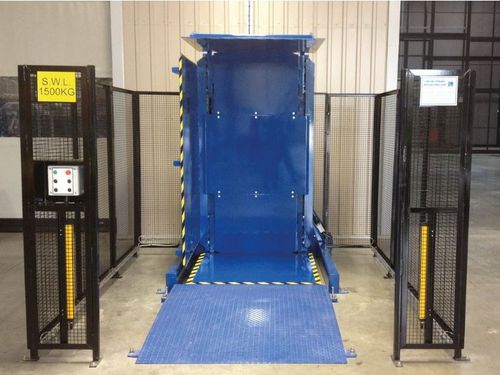

The pallet turner 180º is suitable for all types of products and packaging. It clamps the goods with two guide plates and then turns them 180º. Loading is done by forklift or with the help of a ramp also by hand pallet truck. With our 180º pallet turners your pallets can be changed quickly. Access to damaged goods at the bottom of the pallet stack is ensured in less than a minute with the EGP180. The pallet turner 180º is loaded at floor level and has, 2 guide plates, safety grids and light barriers. Pallets and goods are fixed from above and below with uniform pressure. Your advantages • Loading - turning - emptying • Can be loaded at ground level with pallet trucks and forklifts • Quick and easy change of pallets • Simplified access to damaged goods • Cost reduction of rented pallets • Easy reloading from wooden to plastic or aluminum pallets • No manual handling • Adjustable pressure of the clamping tables (optional) • Productivity increase Version • Maximum load capacity 2.000 kg • Can accommodate loads with large size variations from 650 mm to 2,000 mm • 2 meter high safety guard included as a safety kit • Light barriers included for your safety Dimensions • Clamping table W 1,300 x D 1,300 mm • Overall dimensions including fence W 3,000 x H 2,500 x D 2,250 mm
