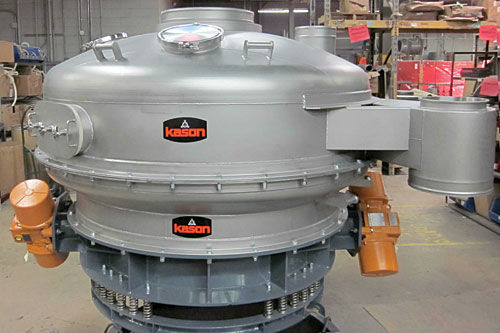

Rotary screener VB35

for bulk materials

VIBROSCREEN® Low-Profile Screeners Low-Profile Pressure Sifter This Vibroscreen® Low-Profile Pressure Sifter from Kason removes oversize particles at ultra-high rates. The sealed system can be employed to operate under a blanket of an inert gas, to prevent the escape of hazardous gases and/or to sift in-line with pressurized reactors. Capable of scalping bulk materials at rates to 50 tons per hour, the 72 in. (183 cm) diameter unit is engineered and constructed to operate under pressure on a batch or continuous basis. Connections to the incoming line, discharge line for on-size particles, and discharge spout for oversize particles are sealed using flexible pressure sleeve connectors. The low-profile "Flo-Thru" design employs two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit, instead of one motor positioned beneath the screening chamber, reducing minimum height requirements significantly. The design also aligns the top inlet above the bottom outlet, allowing on-size material to descend through the screen in a straight-through path at high rates. Oversize material is ejected through a spout at the periphery of the screen. The Pressure Sifter is offered in stainless steel and carbon steel in diameters from 18 to 84 in. (460 to 2135 mm).
